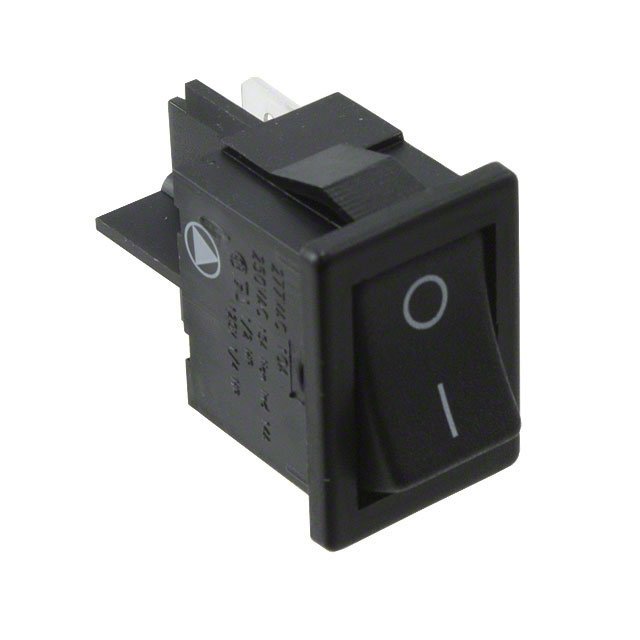

H8500VBBB-551W-B
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 15A 250V
Deep-Dive with AI
Search across all available documentation for this part.
H8500VBBB-551W-B
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 15A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H8500VBBB-551W-B |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 15 A |
| Features | Antimicrobial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 19.3 mm |
| Panel Cutout Dimensions [y] | 12.9 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 4.34 | |
Description
General part information
H8500VB Series
Rocker Switch SPST 15A (AC) 250 V Panel Mount, Snap-In
