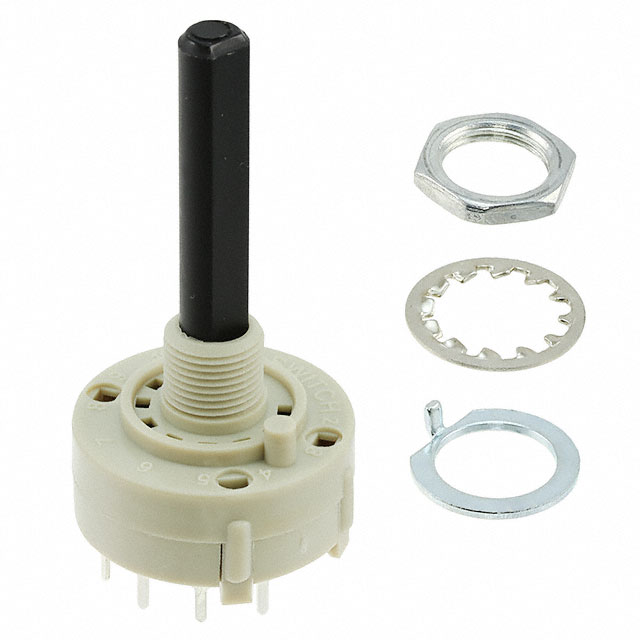

KC14A30.001NPS

Active

E-Switch

SWITCH ROTARY 4POS 350MA 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROTARY 4POS 350MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KC14A30.001NPS

Actuator Length [x]	30 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	SP4T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	350 mA
Depth Behind Panel	14.2 mm
Index Stops	Fixed
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	4
Panel Cutout Dimensions [diameter]	9.8 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V

Part	Number of Positions	Contact Material	Mounting Type	Depth Behind Panel	Circuit per Deck	Actuator Length [x]	Number of Decks [custom]	Voltage Rating - AC	Number of Poles per Deck	Actuator Type [diameter]	Actuator Type	Contact Finish	Termination Style	Current Rating (Amps)	Contact Timing	Index Stops	Panel Cutout Dimensions [diameter]	Angle of Throw	Depth Behind Panel [z]
E-Switch KC14A30.001NPS	4	Copper Alloy	Panel Mount Through Hole	14.2 mm	SP4T	30 mm	1	125 V	1	6.35 mm	Flatted	Silver	PC Pin	350 mA	Non-Shorting	Fixed	9.8 mm	30 °
E-Switch KC14A30.001SLF	4	Copper Alloy			SP4T	30 mm	1	125 V	1	6.35 mm	Flatted	Gold	Solder Lug	350 mA	Shorting	Fixed	9.8 mm	30 °	18.5 mm
E-Switch KC14A38.001NPS	4	Copper Alloy	Panel Mount Through Hole	14.2 mm	SP4T	38 mm	1	125 V	1	6.35 mm	Flatted	Silver	PC Pin	350 mA	Non-Shorting	Fixed	9.8 mm	30 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 4 Position SP4T 350mA (AC) 125 VAC Panel Mount, Through Hole
