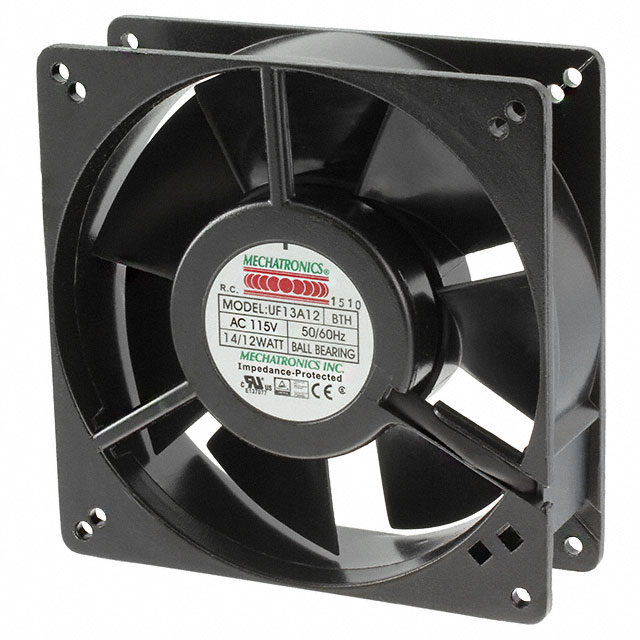

UF13A12-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 127X38MM 115VAC

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN AXIAL 127X38MM 115VAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF13A12-BTHR	UF13A Series

Air Flow	3.36 m³/min	3.36 m³/min
Air Flow	120 CFM	120 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Fan Type	Tubeaxial	Tubeaxial
Features	-	Salt Fog Rated
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	50 dB(A)	50 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	12 W	12 W
RPM	3000 RPM	3000 RPM
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	127 mm	127 mm
Static Pressure	0.14 in H2O	0.14 in H2O
Static Pressure	34.9 Pa	34.9 Pa
Termination	2 Terminals	2 Terminals, 2 Wire Leads
Voltage - Rated	115 VAC	115 VAC
Width [y]	38 mm	38 mm

FAN AXIAL 127X38MM 115VAC

Part	Approval Agency	Static Pressure	Static Pressure	Voltage - Rated	Power (Watts)	Material - Frame	Noise	RPM	Fan Type	Width [y]	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade	Termination	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Features	Ingress Protection
Mechatronics Fan Group UF13A12-BTHR	CE, cUL, TUV, UL	0.14 in H2O	34.9 Pa	115 VAC	12 W	Aluminum	50 dB(A)	3000 RPM	Tubeaxial	38 mm	3.36 m³/min	120 CFM	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	2 Terminals	Ball	127 mm	127 mm
Mechatronics Fan Group UF13A12-BWHNSR	CE, cUL, TUV, UL	0.14 in H2O	34.9 Pa	115 VAC	12 W	Aluminum	50 dB(A)	3000 RPM	Tubeaxial	38 mm	3.36 m³/min	120 CFM	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	2 Wire Leads	Ball	127 mm	127 mm	Salt Fog Rated	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF13A12-BWHR	CE, cUL, TUV, UL	0.14 in H2O	34.9 Pa	115 VAC	12 W	Aluminum	50 dB(A)	3000 RPM	Tubeaxial	38 mm	3.36 m³/min	120 CFM	70 °C	70 °C	-40 °C	-40 °C	Polybutylene Terephthalate (PBT)	2 Wire Leads	Ball	127 mm	127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115VAC Square - 127mm L x 127mm H Ball 120.0 CFM (3.36m³/min) 2 Terminals
