1072843

Active

SICK, Inc.

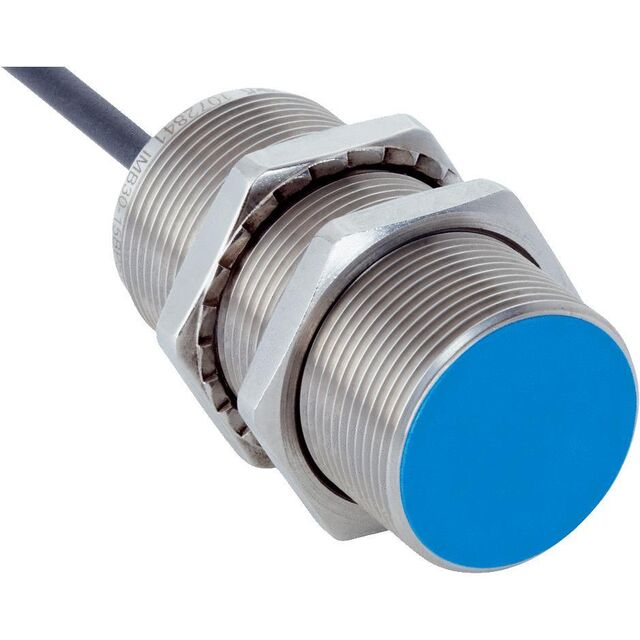

SENSOR PROX INDUCTIV 15MM CYL 2M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1072843

Active

SICK, Inc.

SENSOR PROX INDUCTIV 15MM CYL 2M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1072843

Indicator [custom]	No Indicator
Ingress Protection	IP68, IP69K
Material - Body	Plastic
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	NPN-NO, 3-Wire
Package / Case	Cylinder, Threaded - M30
Response Frequency	500 Hz
Sensing Distance	15 mm
Sensing Distance	0.591 "
Sensor Type	Inductive
Shielding	Shielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IMB30 Series

Part	Material - Body	Package / Case	Indicator [custom]	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Sensor Type	Ingress Protection	Response Frequency	Shielding	Sensing Distance	Sensing Distance
SICK, Inc. 1074416	Plastic	Cylinder Threaded - M30	LED	Connector	30 VDC	10 VDC	-40 °C	100 °C	4-Wire PNP-NC/NO	Inductive	IP68 IP69K	500 Hz	Shielded	0.787 in	20 mm
SICK, Inc. 1072843	Plastic	Cylinder Threaded - M30	No Indicator	Cable Leads	30 VDC	10 VDC	-40 °C	100 °C	NPN-NO 3-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.591 "	15 mm
SICK, Inc. 1072851	Plastic	Cylinder Threaded - M30	No Indicator	Connector	30 VDC	10 VDC	-40 °C	100 °C	NPN-NC 3-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.591 "	15 mm
SICK, Inc. 1072840	Plastic	Cylinder Threaded - M30	No Indicator	Connector	30 VDC	10 VDC	-40 °C	100 °C	NPN-NC 3-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.787 in	20 mm
SICK, Inc. IMB30-20NPOVC0K	Plastic	Cylinder Threaded - M30	No Indicator	Connector	30 VDC	10 VDC	-40 °C	100 °C	PNP-NC 3-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.787 in	20 mm
SICK, Inc. 1074408	Plastic	Cylinder Threaded - M30	LED	Connector	30 VDC	10 VDC	-40 °C	100 °C	NPN-NC/NO 4-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.591 "	15 mm
SICK, Inc. 1074417	Plastic	Cylinder Threaded - M30	LED	Connector	30 VDC	10 VDC	-40 °C	100 °C	NPN-NC/NO 4-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.591 "	15 mm
SICK, Inc. 1072835	Plastic	Cylinder Threaded - M30	No Indicator	Connector	30 VDC	10 VDC	-40 °C	100 °C	PNP-NC 3-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.591 "	15 mm
SICK, Inc. 1074407	Plastic	Cylinder Threaded - M30	LED	Connector	30 VDC	10 VDC	-40 °C	100 °C	4-Wire PNP-NC/NO	Inductive	IP68 IP69K	500 Hz	Shielded	0.787 in	20 mm
SICK, Inc. 1072848	Plastic	Cylinder Threaded - M30	No Indicator	Cable Leads	30 VDC	10 VDC	-40 °C	100 °C	NPN-NC 3-Wire	Inductive	IP68 IP69K	500 Hz	Shielded	0.787 in	20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 107.72

Description

General part information

IMB30 Series

SENSOR PROX INDUCTIV 15MM CYL 2M

Documents

Technical documentation and resources
