20GEEG3EM

Active

Delta Electronics

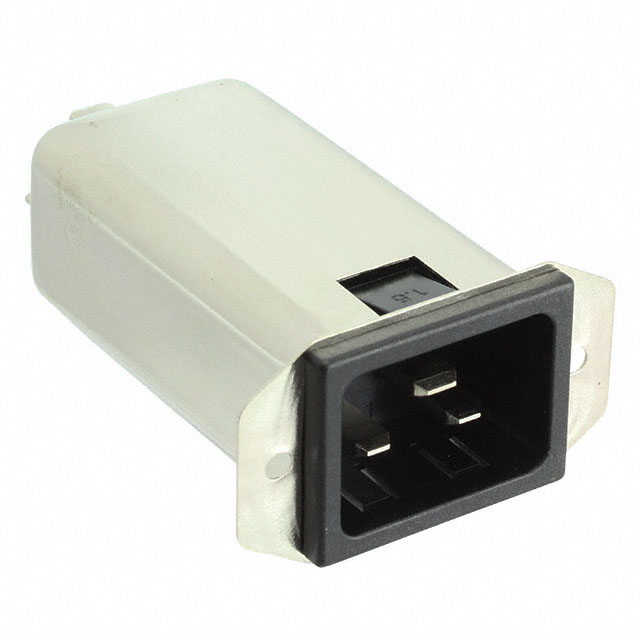

PWR ENT RCPT IEC320-C20 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C20 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	20GEEG3EM

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C20
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	20 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	34.5 mm
Panel Cutout Dimensions [y]	26.5 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

PWR ENT RCPT IEC320-C20 PANEL QC

Part	Filter Type	Current Rating - Appliance Inlet	Connector Type	Accomodates a Fuse	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Termination	Connector Style	Mounting Type	Approval Agency
Delta Electronics 20GEEG3EM	Filtered (EMI, RFI) - Commercial, Medical	20 A	Male Blades, Receptacle		34.5 mm	26.5 mm	115 VAC	250 VAC	Quick Connect	IEC 320-C20	Flange, Panel Mount	CSA, UL, VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange

Technical documentation and resources
