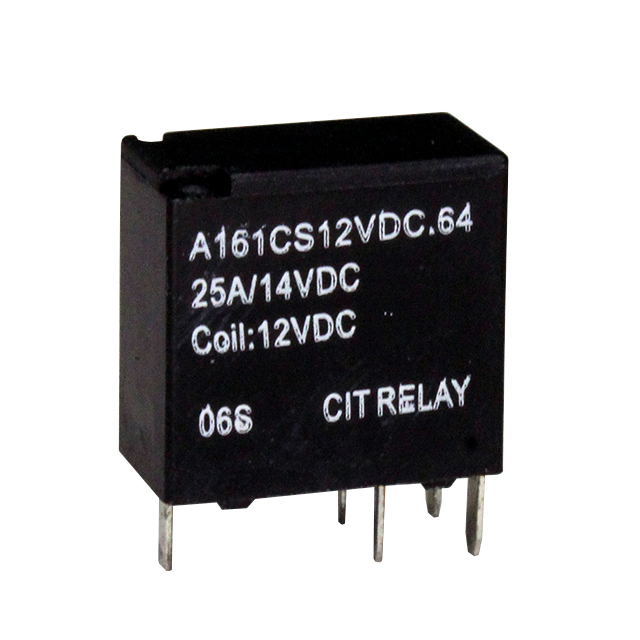

A161CS12VDC.64

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 25A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 25A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	A161CS12VDC.64

Coil Current	53.3 mA
Coil Power	640 mW
Coil Resistance	225 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	25 A
Features	Sealed - Fully
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	1.2 VDC
Operate Time	10 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Release Time	5 ms
Switching Voltage [Max]	20 VDC
Termination Style	PC Pin

RELAY AUTOMOTIVE SPDT 25A 12V

Part	Must Release Voltage	Switching Voltage [Max]	Must Operate Voltage	Features	Termination Style	Contact Rating (Current)	Coil Current	Coil Power	Coil Voltage	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Contact Material	Coil Type	Release Time	Operate Time	Mounting Type
CIT Relay and Switch A161CS12VDC.64	1.2 VDC	20 VDC	8.4 VDC	Sealed - Fully	PC Pin	25 A	53.3 mA	640 mW	12 VDC	SPDT (1 Form C)	-40 °C	105 ░C	225 Ohms	Silver Tin Oxide Indium Oxide (AgSnOInO)	Non Latching	5 ms	10 ms	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 25A 12V

Technical documentation and resources
