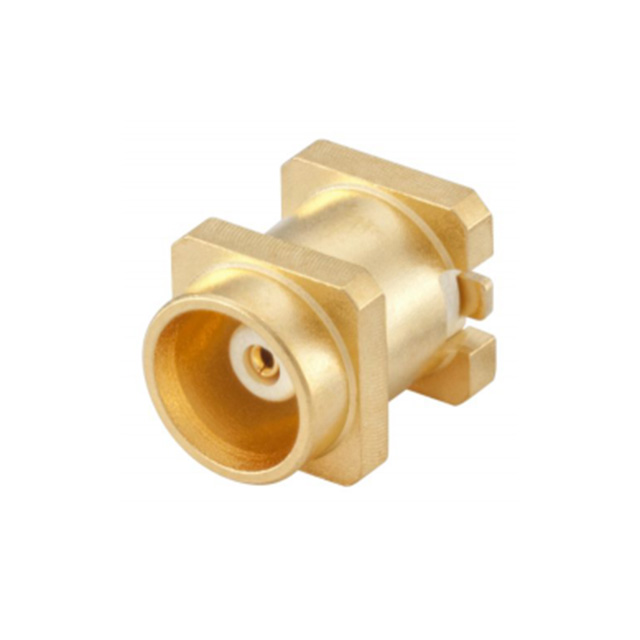

29K10H-40ML5
ActiveRosenberger
CONN MCX JACK STR 50OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
29K10H-40ML5
ActiveRosenberger
CONN MCX JACK STR 50OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 29K10H-40ML5 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.16 | |
| 10 | $ 5.57 | |||
| 25 | $ 5.26 | |||
| 50 | $ 5.13 | |||
| 100 | $ 4.87 | |||
| 250 | $ 4.36 | |||
| Digi-Reel® | 1 | $ 6.16 | ||
| 10 | $ 5.57 | |||
| 25 | $ 5.26 | |||
| 50 | $ 5.13 | |||
| 100 | $ 4.87 | |||
| 250 | $ 4.36 | |||
| Tape & Reel (TR) | 500 | $ 4.20 | ||
| 1000 | $ 3.68 | |||
| 1500 | $ 3.60 | |||
| 2500 | $ 3.49 | |||
Description
General part information
29K10H Series
MCX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
