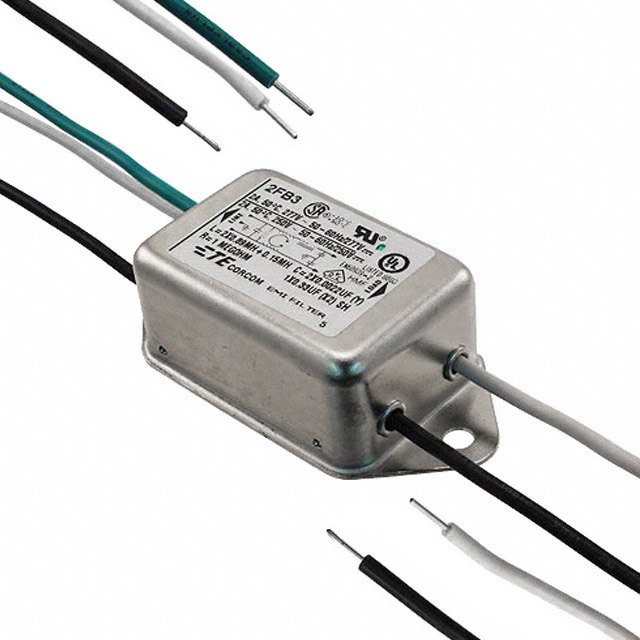

8-1609095-9

Active

TE Connectivity Corcom Filters

LINE FILT 277VDC/VAC 2A CHAS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILT 277VDC/VAC 2A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	8-1609095-9

Applications	Lighting
Approval Agency	VDE, CSA, UR
Configuration	Single Stage
Current	2 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Inductance	1.04 mH, 890 µH
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Wire Leads
Voltage - Rated AC	277 V
Voltage - Rated DC	277 V

LINE FILT 277VDC/VAC 2A CHAS

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Inductance	Configuration	Approval Agency	Mounting Type	Termination Style	Applications	Current	Voltage - Rated AC	Voltage - Rated DC	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Filter Type
TE Connectivity Corcom Filters 8-1609095-9	60 Hz	50 Hz	1.04 mH, 890 µH	Single Stage	CSA, UR, VDE	Chassis Mount	Wire Leads	Lighting	2 A	277 V	277 V	-10 °C	50 °C	Single Phase
