346-078 Series

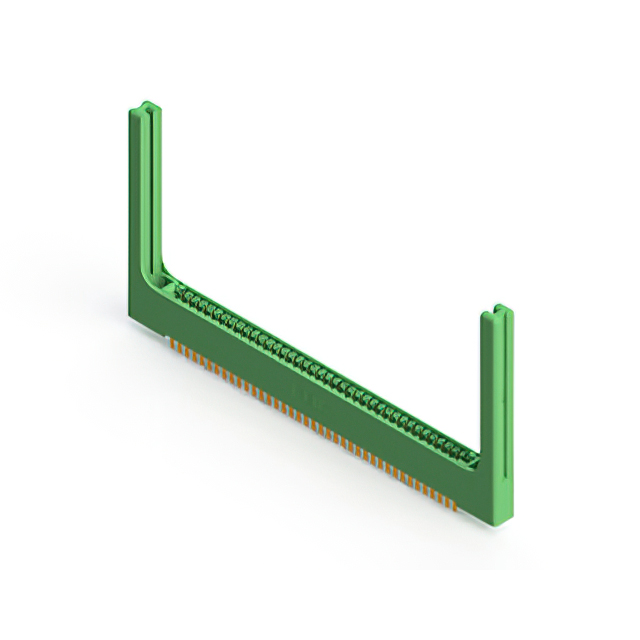

78 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green

Technical Specifications

Parameters and characteristics for this part

Specification	346-078-500-258

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	39, 78
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.125 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2 rows

346-078 Series

...

Part	Number of Rows	Contact Material	Card Thickness (Min)	Card Thickness (Max)	Color	Contact Type	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Read Out	Termination	Contact Finish	Pitch	Contact Finish Thickness	Card Type	Mounting Type	Gender	Material - Insulation	Termination Rows	Flange Feature Diameter	Flange Feature	Features
EDAC Inc. 346-078-540-201	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Wire Wrap	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows
EDAC Inc. 346-078-526-804	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows	0.156 in	Top Mount Opening Unthreaded
EDAC Inc. 346-078-556-858	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Board Edge Straddle Mount	Female	Polyester Thermoplastic	2 rows		4-40 Threaded Insert Top Mount Opening	Card Extender Card Guides
EDAC Inc. 346-078-522-804	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows	0.156 in	Top Mount Opening Unthreaded
EDAC Inc. 346-078-522-208	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 346-078-520-807	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows		M3 Threaded Insert Top Mount Opening
EDAC Inc. 346-078-559-203	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder Wire Wrap	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Right Angle Through Hole	Female	Polyester Thermoplastic	2 rows	0.116 in	Floating Bobbin Flush Mount
EDAC Inc. 346-078-500-258	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder Eyelet(s)	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows		4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 346-078-522-858	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Solder	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows		4-40 Threaded Insert Top Mount Opening	Card Guides
EDAC Inc. 346-078-541-808	2	Copper Alloy	0.054 in	0.07 in	Green	Cantilever	39 78	-40 °C	105 °C	Dual	Wire Wrap	Gold	0.125 in	10 Ąin	Dual Edge Non Specified	Through Hole	Female	Polyester Thermoplastic	2 rows		4-40 Threaded Insert Top Mount Opening
