116-87-310-41-007101
ActivePRECI-DIP SA

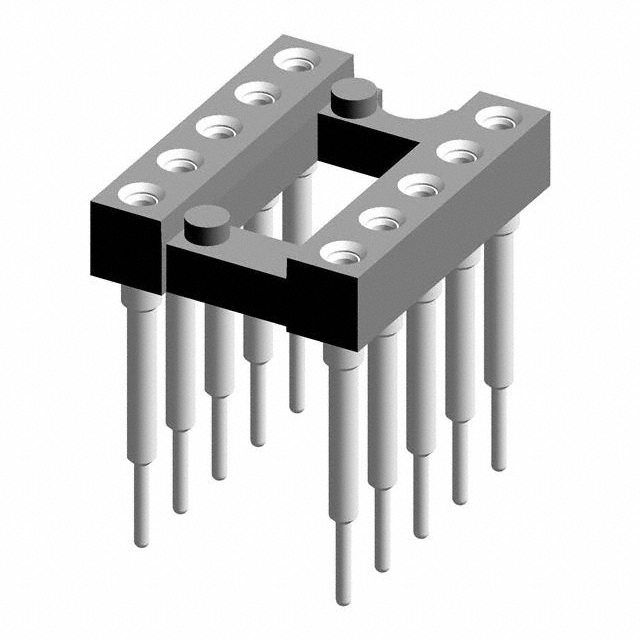

CONN IC DIP SOCKET 10POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
116-87-310-41-007101
ActivePRECI-DIP SA
CONN IC DIP SOCKET 10POS GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 116-87-310-41-007101 |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post [custom] | Brass |
| Contact Resistance | 10 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Open Frame, Elevated |
| Housing Material | Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) [custom] | 2 x 5 |
| Number of Positions or Pins (Grid) [custom] | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 3.18 mm |
| Termination Post Length | 0.125 in |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
116-87 Series
...
| Part | Contact Material - Post [custom] | Termination | Mounting Type | Current Rating (Amps) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Pitch - Mating | Pitch - Mating | Type | Type | Type | Contact Finish - Post | Housing Material | Contact Finish Thickness - Mating | Material Flammability Rating | Features | Operating Temperature [Min] | Operating Temperature [Max] | Contact Resistance | Termination Post Length | Termination Post Length | Contact Finish - Mating | Contact Material - Mating | Pitch - Post | Pitch - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 2 x 5 | 10 | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | |||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | |||||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 2 x 16 | 0.1 in | 2.54 mm | 0.4 in | 10.16 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | 32 | |||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | 24 | ||||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | 42 | ||||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 2 x 5 | 10 | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | |||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | 4 | ||||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 0.1 in | 2.54 mm | 0.3 " | 7.62 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | 18 | ||||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | 48 | ||||
PRECI-DIP SA | Brass | Solder | Through Hole | 1 A | 2 x 16 | 0.1 in | 2.54 mm | 0.6 in | 15.24 mm | DIP | Tin | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Flash | UL94 V-0 | Elevated Open Frame | -55 °C | 125 °C | 10 mOhm | 3.18 mm | 0.125 in | Gold | Beryllium Copper | 2.54 mm | 0.1 in | 32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2016 | $ 0.88 | |
Description
General part information
116-87 Series
10 (2 x 5) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
