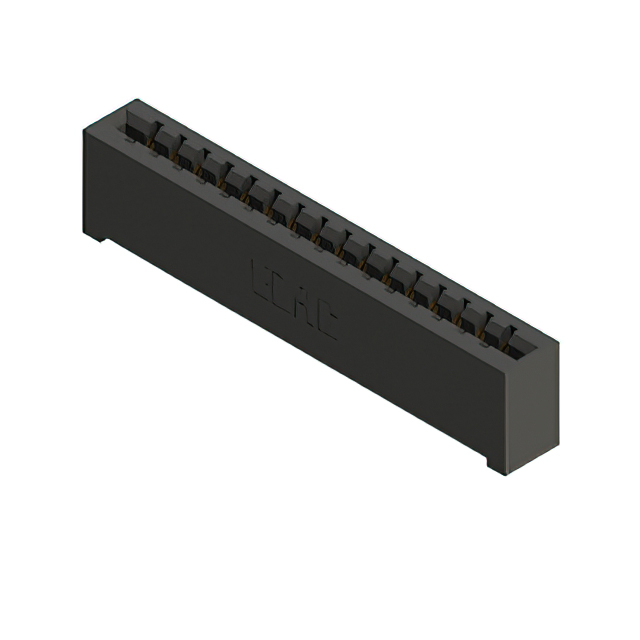

387-016-523-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 16POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-016-523-101
ActiveEDAC Inc.
CONN EDGE SGL FMALE 16POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-016-523-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 16 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
387-016 Series
...
| Part | Color | Number of Rows | Card Type | Contact Material | Mounting Type | Termination | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Number of Positions | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 1 | Non Specified - Single Edge | Copper Alloy | Through Hole | Solder | Single | 10 Áin | 0.25 Ám | 1 | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | |||||
EDAC Inc. | Black | 1 | Non Specified - Single Edge | Copper Alloy | Through Hole Right Angle | Wire Wrap | Single | 10 Áin | 0.25 Ám | 1 | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | |||||
EDAC Inc. | Black | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole Right Angle | Wire Wrap | Dual | 10 Áin | 0.25 Ám | 2 | 0.156 in | 3.96 mm | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | 8 | 8 | 8 | |||
EDAC Inc. | Black | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Wire Wrap | Dual | 10 Áin | 0.25 Ám | 2 | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | 8 | 8 | 8 | |||||
EDAC Inc. | Black | 1 | Non Specified - Single Edge | Copper Alloy | Through Hole | Solder | Single | 10 Áin | 0.25 Ám | 1 | 0.156 in | 3.96 mm | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | |||||
EDAC Inc. | Black | 1 | Non Specified - Single Edge | Copper Alloy | Through Hole | Solder | Single | 10 Áin | 0.25 Ám | 1 | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | |||||||
EDAC Inc. | Black | 1 | Non Specified - Single Edge | Copper Alloy | Through Hole | Solder | Single | 10 Áin | 0.25 Ám | 1 | 0.156 in | 3.96 mm | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | ||||||||
EDAC Inc. | Black | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Wire Wrap | Dual | 10 Áin | 0.25 Ám | 2 | 0.156 in | 3.96 mm | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | 8 | 8 | 8 | ||||||
EDAC Inc. | Black | 2 | Non Specified - Dual Edge | Copper Alloy | Through Hole | Wire Wrap | Dual | 10 Áin | 0.25 Ám | 2 | 0.156 in | 3.96 mm | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female | 8 | 8 | 8 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Black | 1 | Non Specified - Single Edge | Copper Alloy | Through Hole | Solder | Single | 10 Áin | 0.25 Ám | 1 | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | Gold | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 16 | 16 | Polyester Thermoplastic | -40 °C | 105 ░C | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 6.60 | |
Description
General part information
387-016 Series
16 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
