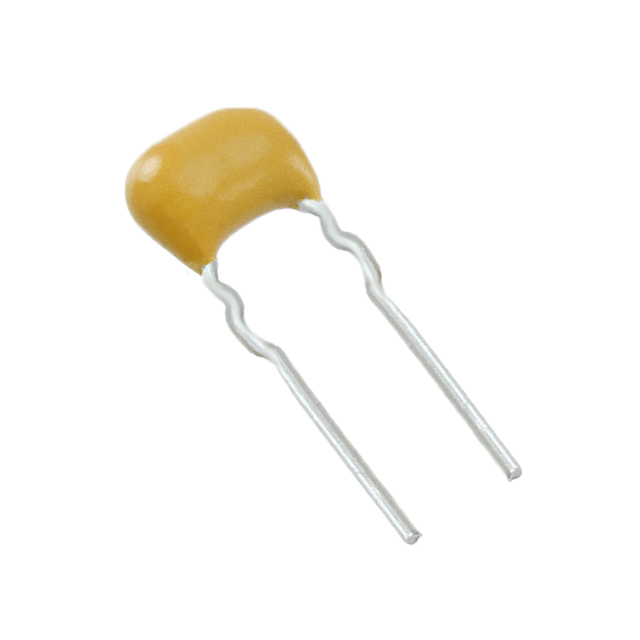

C335C274J5G5TA7301

Active

KEMET

CAP CER 0.27UF 50V C0G/NP0 RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C335C274J5G5TA7301

Active

KEMET

CAP CER 0.27UF 50V C0G/NP0 RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C335C274J5G5TA7301

Applications	General Purpose
Capacitance	0.27 µF
Features	Low ESL
Height - Seated (Max) [Max] [z]	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.28 in
Size / Dimension [x]	7.11 mm
Size / Dimension [y]	4.07 mm
Size / Dimension [y]	0.16 in
Temperature Coefficient	NP0, C0G
Tolerance	5 %
Voltage - Rated	50 VDC

C335C Series

...

Part	Temperature Coefficient	Lead Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Lead Spacing	Lead Spacing	Features	Voltage - Rated	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Tolerance	Capacitance
KEMET C335C104F2G5TA	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	200 V	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	1 %	100000 pF
KEMET C335C154F5G5TA7301	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	50 VDC	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	1 %	0.15 ÁF
KEMET C335C272FAG5TA7301	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	250 V	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	1 %	2700 pF
KEMET C335C102FAG5TA	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	250 V	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	1 %	0.001 µF
KEMET C335C563F5G5TA	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	50 VDC	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	1 %	0.056 µF
KEMET C335C823K2G5TA7301	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	200 V	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	10 %	0.082 µF
KEMET C335C224K1G5TA	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	100 V	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	10 %	0.22 µF
KEMET C335C274J5G5TA7301	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	50 VDC	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	5 %	0.27 µF
KEMET C335C561FAG5TA7301	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	250 V	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	1 %	560 pF
KEMET C335C222FAG5TA	C0G NP0	Formed Leads - Kinked	0.4 in	10.16 mm	General Purpose	5.08 mm	0.2 in	Low ESL	250 V	4.07 mm	0.16 in	0.28 in	7.11 mm	-55 °C	125 °C	Radial	Through Hole	1 %	2200 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 1.15

Description

General part information

C335C Series

0.27 µF ±5% 50V Ceramic Capacitor C0G, NP0 Radial
