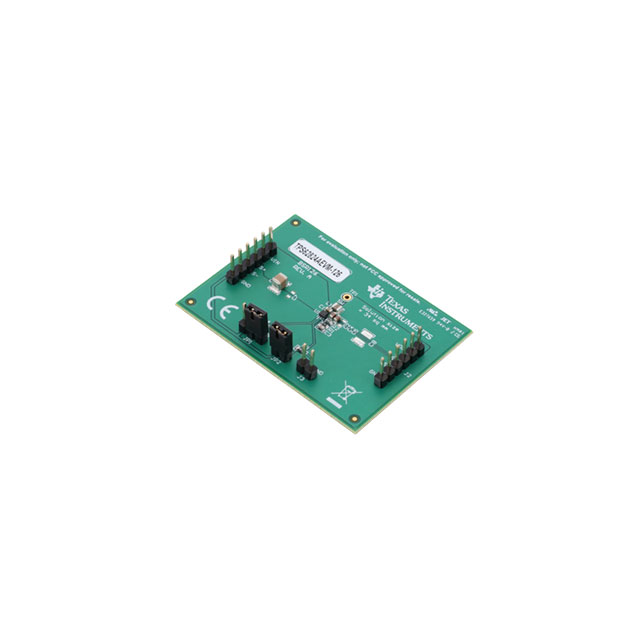

TPS62824AEVM-126
ActiveTexas Instruments
TPS62824A 5.5-V INPUT, 1-A OUTPU
TPS62824AEVM-126
ActiveTexas Instruments
TPS62824A 5.5-V INPUT, 1-A OUTPU
Description
General part information
TPS62824AEVM-126
TPS62824A - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | TPS62824AEVM-126 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 1 A |
| Frequency - Switching | 2.2 MHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | TPS62824A |
| Voltage - Input (Maximum) | 5.5 V |
| Voltage - Input (Minimum) | 2.4 V |
| Voltage - Output | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
