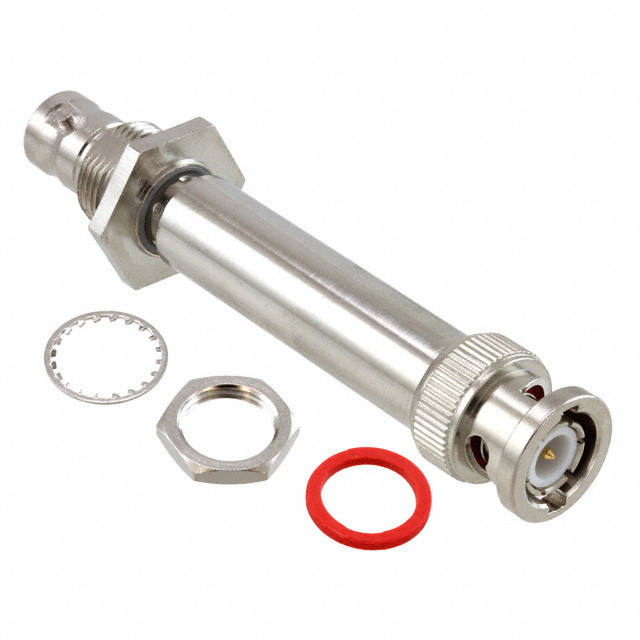

112667-10

Active

Amphenol RF

CONN ADAPT PLUG-JACK BNC 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT PLUG-JACK BNC 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	112667-10

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Phosphor Bronze
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Female Socket, BNC Jack
Fastening Type	Bayonet Lock
Features	Isolated
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mounting Feature	Style	Center Contact Material	Includes	Features	Convert From (Adapter End)	Fastening Type	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Adapter Series	Body Material	Adapter Type	Frequency - Max [Max]	Conversion Type	Impedance	Convert To (Adapter End)	Body Finish
Amphenol RF 112667-10	Bulkhead	Straight	Brass Phosphor Bronze	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Isolated	BNC Plug Male Pin	Bayonet Lock	500	-65 ░C	165 °C	Gold	BNC to BNC	Brass	Plug to Jack	4 GHz	Same Series	50 Ohms	BNC Jack Female Socket	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 50 Ohms
