Q-2V0710005003I
ActiveAmphenol Custom Cable

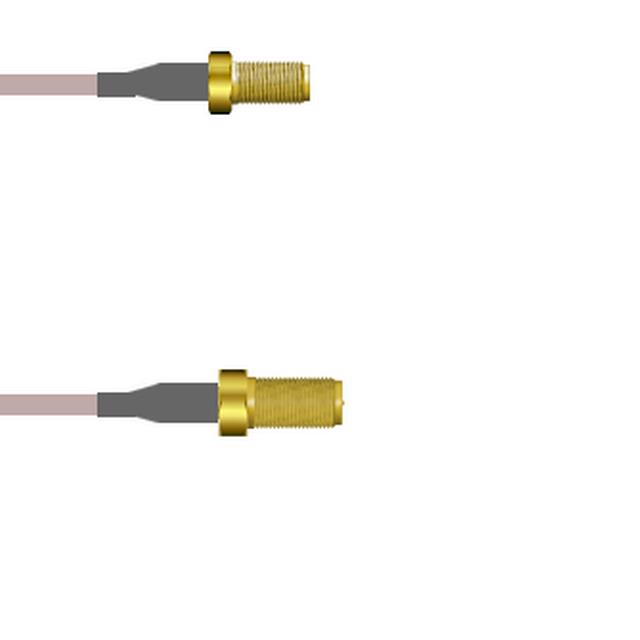

COAX CBL RP-SMA TO SMA 3"
Deep-Dive with AI
Search across all available documentation for this part.
Q-2V0710005003I
ActiveAmphenol Custom Cable
COAX CBL RP-SMA TO SMA 3"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2V0710005003I |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 3 in |
| Length | 76.2 mm |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 75.37 | |
| 25 | $ 73.90 | |||
| 50 | $ 72.43 | |||
| 100 | $ 70.96 | |||
| 250 | $ 69.49 | |||
Description
General part information
Q-2V0710 Series
Cable Assembly Coaxial RP-SMA to SMA RG-316 3.000" (76.20mm)
Documents
Technical documentation and resources
No documents available
