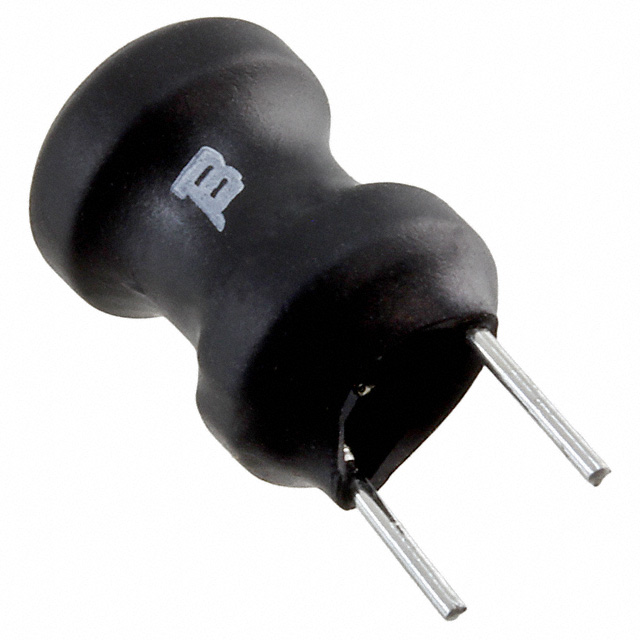

PT12120SL
ObsoleteBourns Inc.
FIXED IND 600UH 200MA 4 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT12120SL
ObsoleteBourns Inc.
FIXED IND 600UH 200MA 4 OHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT12120SL |
|---|---|
| Current Rating (Amps) | 0.2 A |
| DC Resistance (DCR) [Max] | 4 Ohm |
| Frequency - Self Resonant | 1.6 MHz |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Inductance | 600 µH |
| Inductance Frequency - Test | 796 kHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Radial, Vertical Cylinder |
| Q @ Freq | 80, 796 kHz |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 10.15 mm |
| Size / Dimension [diameter] | 0.4 " |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PT121 Series
600 µH Unshielded Wirewound Inductor 200 mA 4Ohm Max Radial, Vertical Cylinder
