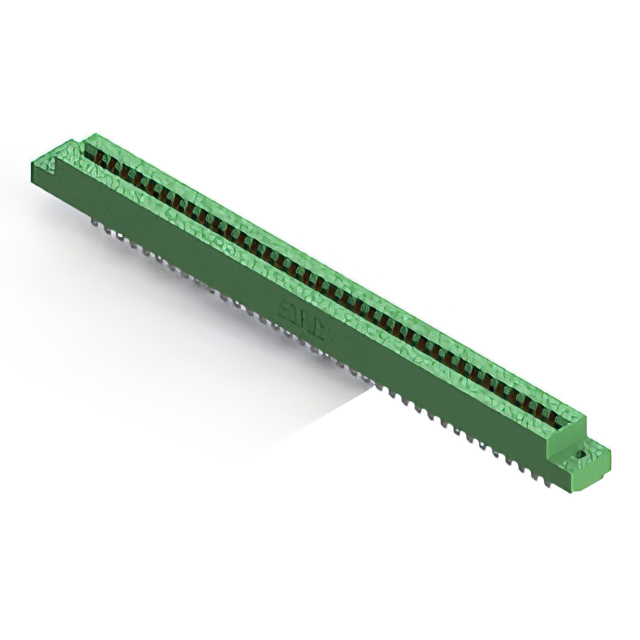

306-036-500-102
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
306-036-500-102
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 72POS 0.156
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-036-500-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
306-036 Series
| Part | Contact Type | Number of Rows | Material - Insulation | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Termination | Termination Rows | Contact Finish | Number of Positions/Bay/Row [custom] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Gender | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder Eyelet(s) | 1 | Gold | 36 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | ||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder | 1 | Tin | 36 | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Card Guides | ||||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder Eyelet(s) | 1 | Gold | 36 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | ||||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder | 1 | Tin | 36 | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Panel Mount Through Hole | |||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder | 1 | Tin | 36 | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Card Guides | ||||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder | 1 | Gold | 36 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | 4-40 Flush Mount Threaded Insert Top Opening | Panel Mount Through Hole | Card Guides | ||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder Eyelet(s) | 1 | Gold | 36 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | ||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder | 1 | Gold | 36 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | Flush Mount M3 Threaded Insert Top Opening | Panel Mount Through Hole | |||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder Eyelet(s) | 1 | Gold | 36 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Female | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | ||
EDAC Inc. | Cantilever | 2 | Polyester Thermoplastic | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | Green | -40 °C | 105 ░C | Copper Alloy | 72 | Solder | 1 | Gold | 36 | Non Specified - Dual Edge | Female | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 19.43 | |
Description
General part information
306-036 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
