MDLSP2-22M-01

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 22MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP LOCK NYLON 22MM

Technical Specifications

Parameters and characteristics for this part

Specification	MDLSP2-22M-01

Between Board Height	22 mm
Between Board Height	0.866 in
Holding Type	Snap Lock
Length - Overall [x]	1.232 in
Length - Overall [x]	31.3 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.5 mm
Mounting Hole Diameter [diameter]	0.138 in
Mounting Panel Thickness	0.065 in
Mounting Panel Thickness	1.65 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	3.5 mm
Support Hole Diameter [diameter]	0.138 in
Support Panel Thickness [custom]	0.065 in
Support Panel Thickness [custom]	1.65 mm

Part	Between Board Height	Between Board Height	Holding Type	Length - Overall [x]	Length - Overall [x]	Material	Mounting Type	Support Panel Thickness [custom]	Support Panel Thickness [custom]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Length - Overall	Between Board Height [z]	Between Board Height [z]
Essentra Access Solutions MDLSP2-22M-01	22 mm	0.866 in	Snap Lock	1.232 in	31.3 mm	Nylon	Snap Lock	0.065 in	1.65 mm	3.5 mm	0.138 in	3.5 mm	0.138 in	0.065 in	1.65 mm
Essentra Access Solutions MDLSP2-04M-01	4 mm	0.157 in	Snap Lock	0.524 in		Nylon	Snap Lock	0.065 in	1.65 mm	3.5 mm	0.138 in	3.5 mm	0.138 in	0.065 in	1.65 mm	13.3 mm
Essentra Access Solutions MDLSP2-05M-01	5 mm	0.197 in	Snap Lock	0.563 in	14.3 mm	Nylon	Snap Lock	0.065 in	1.65 mm	3.5 mm	0.138 in	3.5 mm	0.138 in	0.065 in	1.65 mm
Essentra Access Solutions MDLSP2-20M-01	20 mm	0.787 in	Snap Lock	1.154 in	29.3 mm	Nylon	Snap Lock	0.065 in	1.65 mm	3.5 mm	0.138 in	3.5 mm	0.138 in	0.065 in	1.65 mm
Essentra Access Solutions MDLSP2-02M-01	2 mm	0.079 in	Snap Lock	0.445 in	11.3 mm	Nylon	Snap Lock	0.065 in	1.65 mm	3.5 mm	0.138 in	3.5 mm	0.138 in	0.065 in	1.65 mm
Essentra Access Solutions MDLSP2-16M-01			Snap Lock	0.996 in	25.3 mm	Nylon	Snap Lock	0.065 in	1.65 mm	3.5 mm	0.138 in	3.5 mm	0.138 in	0.065 in	1.65 mm		16 mm	0.63 in
Essentra Access Solutions MDLSP2-18M-01	18 mm	0.709 in	Snap Lock	1.075 in	27.3 mm	Nylon	Snap Lock	0.065 in	1.65 mm	3.5 mm	0.138 in	3.5 mm	0.138 in	0.065 in	1.65 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

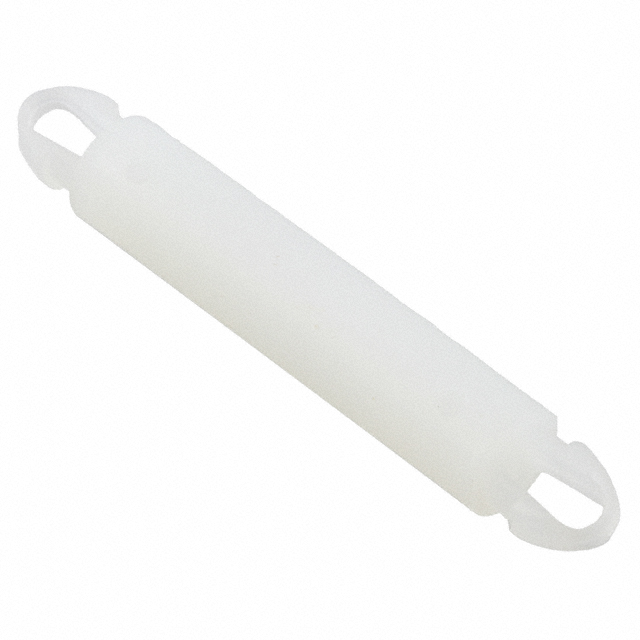

Board Support Snap Lock / Snap Lock Nylon 0.866" (22.00mm)
