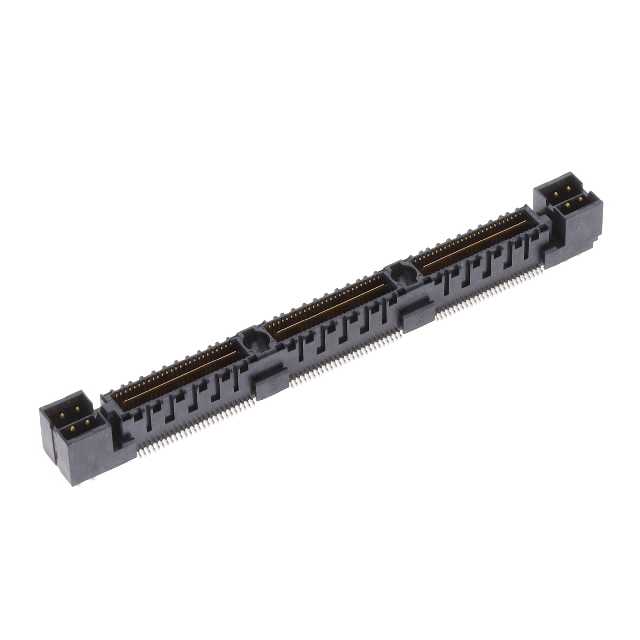

QMS-078-06.75-L-D-PT4
ActiveSamtec Inc.
CONN HDR 156POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
QMS-078-06.75-L-D-PT4
ActiveSamtec Inc.
CONN HDR 156POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QMS-078-06.75-L-D-PT4 |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide, Ground Bus (Plane), Power Pins (8) |
| Height Above Board | 0.25 in |
| Height Above Board | 6.35 mm |
| Mated Stacking Heights | 11 mm, 13 mm |
| Mounting Type | Surface Mount, Through Hole |
| Number of Positions | 160 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 24.68 | |
| 10 | $ 23.37 | |||
| 25 | $ 22.49 | |||
| 50 | $ 21.94 | |||
| 100 | $ 20.51 | |||
Description
General part information
QMS-078 Series
160 (156 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount, Through Hole Gold
