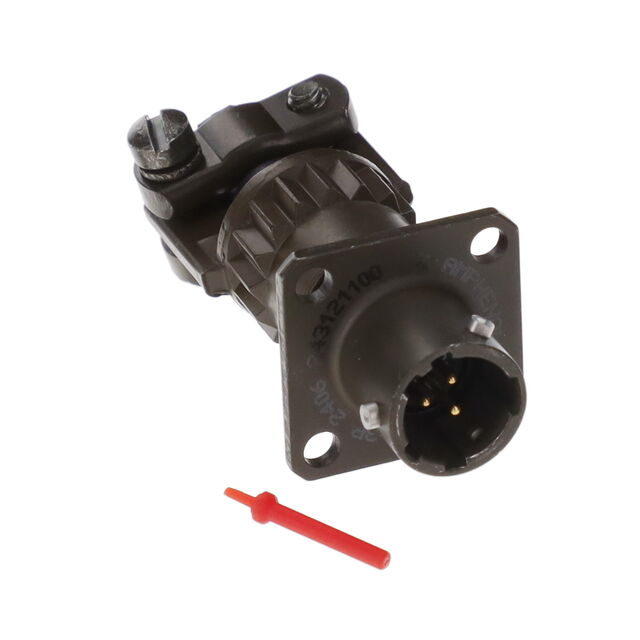

MS3110F8-3P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3110F8-3P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB RECEPT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3110F8-3P | MS3110F8 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | - | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Feature | Flange | Flange |
| Number of Positions | - | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-3 | 8-3, 8-2 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 VAC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 81.99 | |
| 10 | $ 75.23 | |||
| 25 | $ 72.34 | |||
| 50 | $ 69.93 | |||
| 100 | $ 66.07 | |||
MS3110F8 Series
RECEPT
| Part | Grade | Mounting Feature | Fastening Type | Shielding | Features | Contact Finish - Mating | Orientation | Current Rating (Amps) | Voltage Rating | Applications | Shell Material | Qualification | Ingress Protection | Connector Type | Color | Shell Size - Insert | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Shell Finish | Contact Material | Backshell Material, Plating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3110F8-4S | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3110F8-3S | Military | Flange | Bayonet Lock | Unshielded | Backshell, Cable Clamp | Gold | N | 7.5 A | 600 VAC | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | MIL-DTL-26482 Series I | Environment Resistant | Receptacle, Female Sockets | Olive Drab | 8-3 | Metal | -55 °C | 125 °C | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | ||
Amphenol Industrial Operations MS3110F8-3P | Military | Flange | Bayonet Lock | Unshielded | Backshell, Cable Clamp | Gold | N | 7.5 A | 600 VAC | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | MIL-DTL-26482 Series I | Environment Resistant | Male Pins, Receptacle | Olive Drab | 8-3 | Metal | -55 °C | 125 °C | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | ||
Amphenol Industrial Operations MS3110F8-2SX | Military | Flange | Bayonet Lock | Unshielded | Backshell, Cable Clamp | Gold | X | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Aluminum | MIL-DTL-26482 Series I | Environment Resistant | Receptacle, Female Sockets | Olive Drab | 8-2 | Metal | -55 °C | 125 °C | Neoprene | Olive Drab Chromate over Cadmium | Copper Alloy | Aluminum, Olive Drab Chromate over Cadmium | 2 |
Description
General part information
MS3110F8 Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
