AAA3MBZ
ActiveSwitchcraft Inc.

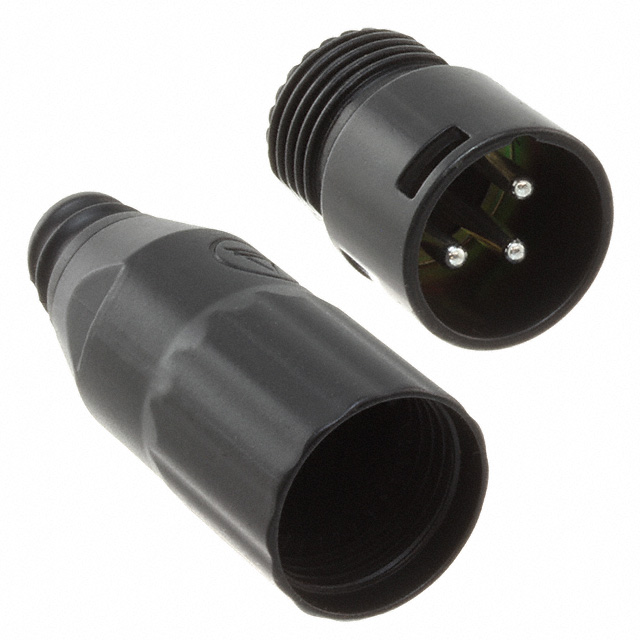

CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AAA3MBZ
ActiveSwitchcraft Inc.
CONN RCPT MALE XLR 3P SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AAA3MBZ | AAA3MB Series |
|---|---|---|
| Applications | Audio, Industrial, Instrumentation, Medical | Audio, Industrial, Instrumentation, Medical, Audio, Instrumentation |
| Backshell Material, Plating | Chrome, Zinc | Chrome, Zinc, Thermoplastic |
| Cable Opening | - | 0.15 in |
| Cable Opening | - | 3.81 mm |
| Cable Opening | - | 7.24 mm |
| Cable Opening | - | 0.285 in |
| Cable Opening | - | 0.205 - 5.21 mm |
| Cable Opening | - | 0.145 - 3.68 in |
| Cable Opening [diameter] | 2.54 mm, 5.59 mm | 2.54 - 5.59 mm |
| Cable Opening [diameter] | 0.1 in, 0.22 in | 0.1 - 0.22 in |
| Color | Black | Black, Green |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Silver | Silver, Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 15 A | 15 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp | Backshell, Strain Relief, Ground, Cable Clamp |
| Ingress Protection | - | IP66 |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature | - | 65 °C |
| Operating Temperature | - | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome, Black Painted |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Size - Insert | XLR | XLR |
| Shielding | Shielded | Shielded |
| Voltage Rating | 125 VAC | 125 VAC |
AAA3MB Series
CONN RCPT MALE XLR 3P SOLDER CUP
| Part | Shell Size - Insert | Shielding | Applications | Fastening Type | Primary Material | Cable Opening [diameter] | Cable Opening [diameter] | Features | Contact Material | Shell Finish | Voltage Rating | Connector Type | Insert Material | Mounting Type | Current Rating (Amps) | Contact Finish - Mating | Backshell Material, Plating | Orientation | Shell Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Ingress Protection | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. AAA3MBZ | XLR | Shielded | Audio, Industrial, Instrumentation, Medical | Latch Lock | Metal | 2.54 mm, 5.59 mm | 0.1 in, 0.22 in | Backshell, Cable Clamp, Ground, Strain Relief | Copper Alloy | Chrome | 125 VAC | Male Pins, Receptacle | Thermoplastic | Free Hanging (In-Line) | 15 A | Silver | Chrome, Zinc | Keyed | Zinc Alloy | Black | |||||||||
Switchcraft Inc. AAA3MBZH | XLR | Shielded | Audio, Instrumentation | Latch Lock | Metal | Backshell, Cable Clamp, Ground, Strain Relief | Copper Alloy | Chrome | Male Pins, Receptacle | Thermoplastic | Free Hanging (In-Line) | Silver | Chrome, Zinc | Keyed | Zinc Alloy | Black | 65 °C | -40 °C | 0.15 in | 3.81 mm | 7.24 mm | 0.285 in | IP66 | ||||||
Switchcraft Inc. AAA3MBAUZ | XLR | Shielded | Audio, Industrial, Instrumentation, Medical | Latch Lock | Metal | 2.54 mm, 5.59 mm | 0.1 in, 0.22 in | Backshell, Cable Clamp, Ground, Strain Relief | Copper Alloy | Chrome | 125 VAC | Male Pins, Receptacle | Thermoplastic | Free Hanging (In-Line) | 15 A | Gold | Chrome, Zinc | Keyed | Zinc Alloy | Black | |||||||||
Switchcraft Inc. AAA3MBYYLP | XLR | Shielded | Audio, Instrumentation | Latch Lock | Metal | Backshell, Ground, Strain Relief | Copper Alloy | Black Painted | Male Pins, Receptacle | Thermoplastic | Free Hanging (In-Line) | Silver | Thermoplastic | Keyed | Zinc Alloy | 0.205 in, 5.21 mm | 0.145 in, 3.68 mm | ||||||||||||
Switchcraft Inc. AAA3MBAUZH | XLR | Shielded | Audio, Instrumentation | Latch Lock | Metal | Backshell, Cable Clamp, Ground, Strain Relief | Copper Alloy | Chrome | Male Pins, Receptacle | Thermoplastic | Free Hanging (In-Line) | Gold | Chrome, Zinc | Keyed | Zinc Alloy | Black | 65 °C | -40 °C | 0.15 in | 3.81 mm | 7.24 mm | 0.285 in | IP66 | ||||||
Switchcraft Inc. AAA3MBGGLP | XLR | Shielded | Audio, Instrumentation | Latch Lock | Metal | Backshell, Ground, Strain Relief | Copper Alloy | Black Painted | Male Pins, Receptacle | Thermoplastic | Free Hanging (In-Line) | Silver | Thermoplastic | Keyed | Zinc Alloy | Black, Green | 0.205 in, 5.21 mm | 0.145 in, 3.68 mm | |||||||||||
Switchcraft Inc. AAA3MBLP | XLR | Shielded | Audio, Instrumentation | Latch Lock | Metal | Backshell, Ground, Strain Relief | Copper Alloy | Black Painted | Male Pins, Receptacle | Thermoplastic | Free Hanging (In-Line) | Silver | Thermoplastic | Keyed | Zinc Alloy | Black | 0.205 in, 5.21 mm | 0.145 in, 3.68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.75 | |
| 10 | $ 5.94 | |||
| 25 | $ 5.36 | |||
| 50 | $ 4.97 | |||
| 100 | $ 4.61 | |||
| 300 | $ 4.12 | |||
| 500 | $ 3.91 | |||
| 1000 | $ 3.65 | |||
| 2500 | $ 3.40 | |||
Description
General part information
AAA3MB Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
