082-856

Active

Amphenol RF

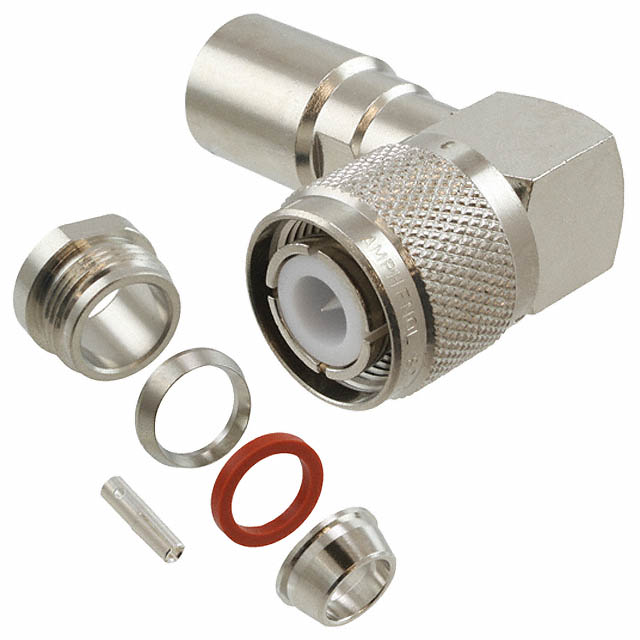

CONN HN PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN HN PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-856

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Connector Style	HN Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Cable Gland, 1 Contact, 1 Gasket, 1 Connector, 1 Clamp, 1 Braid Clamp
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

Part	Body Material	Frequency - Max [Max]	Connector Style	Body Finish	Number of Ports	Impedance	Housing Color	Dielectric Material	Includes	Ingress Protection	Contact Termination	Voltage Rating	Shield Termination	Center Contact Plating	Mounting Type	Mating Cycles	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Connector Type
Amphenol RF 082-856	Brass	4 GHz	HN Type	Nickel	1	50 Ohms	Silver	Polytetrafluoroethylene (PTFE)	1 Braid Clamp 1 Cable Gland 1 Clamp 1 Connector 1 Contact 1 Gasket	Weatherproof	Solder	1500 V	Clamp	Silver	Free Hanging (In-Line) Right Angle	500	213 214 225 302 393 87 8A 9 9A 9B RG-8	-65 ░C	165 °C	Beryllium Copper Brass	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

HN Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
