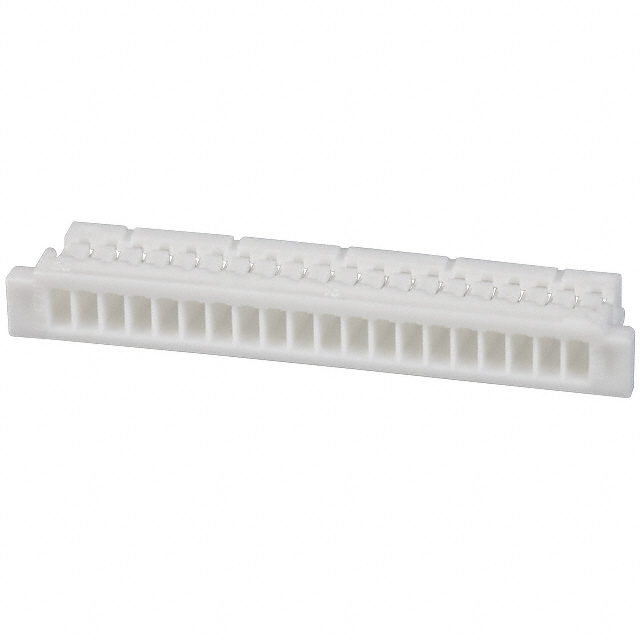

SHR-20V-S-B

Active

JST Sales America Inc.

CONN RCPT HSG 20POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 20POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	SHR-20V-S-B

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	20
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Note	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Number of Rows	Insulation Material	Contact Type	Mounting Type	Pitch [x]	Pitch [x]	Connector Type
JST Sales America Inc. SHR-20V-S-B	Contacts Not Included	Natural	20	-25 °C	85 °C	Crimp	1	Polybutylene Terephthalate (PBT)	Female Socket	Free Hanging (In-Line)	0.039 in	1 mm	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
