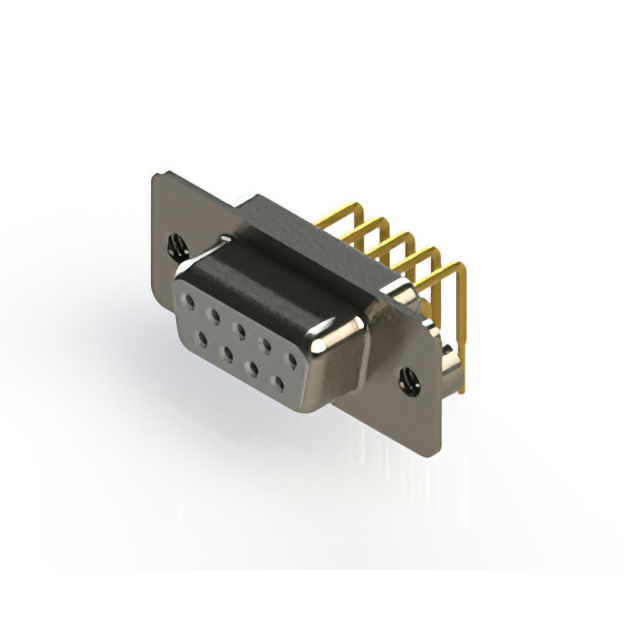

630-M09-340-WT2

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-M09-340-WT2

Active

EDAC Inc.

630M SERIES RIGHT ANGLE D-SUB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-M09-340-WT2

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

630-M09 Series

...

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Contact Type	Contact Finish	Current Rating (Amps)	Connector Type	Color	Flange Feature	Number of Rows	Shell Material, Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Backset Spacing	Backset Spacing	Number of Positions	Material Flammability Rating	Mounting Type	Contact Finish Thickness	Dielectric Material	Features	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 630-M09-240-LN1	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Blue	Housing/Shell (Unthreaded)	2	Nickel Plated Steel	Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle	Flash	Polyamide (PA6T) Nylon 6T	Shielded
EDAC Inc. 630-M09-340-BN6	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Black	4-40	2	Nickel Plated Steel	Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle		Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded	15 µin	0.38 µm
EDAC Inc. 630-M09-340-WT2	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	White	Housing/Shell (Unthreaded)	2		Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle		Polyamide (PA6T) Nylon 6T	Shielded	15 µin	0.38 µm
EDAC Inc. 630-M09-240-GN4	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Green	Housing/Shell (4-40)	2	Nickel Plated Steel	Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle	Flash	Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded
EDAC Inc. 630-M09-240-GT5	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Green	4-40	2		Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle	Flash	Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded
EDAC Inc. 630-M09-240-GN6	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Green	4-40	2	Nickel Plated Steel	Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle	Flash	Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded
EDAC Inc. 630-M09-340-GN1	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Green	Housing/Shell (Unthreaded)	2	Nickel Plated Steel	Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle		Polyamide (PA6T) Nylon 6T	Shielded	15 µin	0.38 µm
EDAC Inc. 630-M09-240-BN5	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Black	4-40	2	Nickel Plated Steel	Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle	Flash	Polyamide (PA6T) Nylon 6T	Mounting Brackets Shielded
EDAC Inc. 630-M09-240-WT1	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	White	Housing/Shell (Unthreaded)	2		Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle	Flash	Polyamide (PA6T) Nylon 6T	Shielded
EDAC Inc. 630-M09-240-GN2	DE E	1	D-Sub	Signal	Gold	5 A	Receptacle Female Sockets	Green	Housing/Shell (Unthreaded)	2	Nickel Plated Steel	Solder	-55 °C	125 °C	Copper Alloy	9.4 mm	0.37 in	9	UL94 V-0	Through Hole Right Angle	Flash	Polyamide (PA6T) Nylon 6T	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 5.18

Description

General part information

630-M09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
