929715-03-04-I

Active

3M (TC)

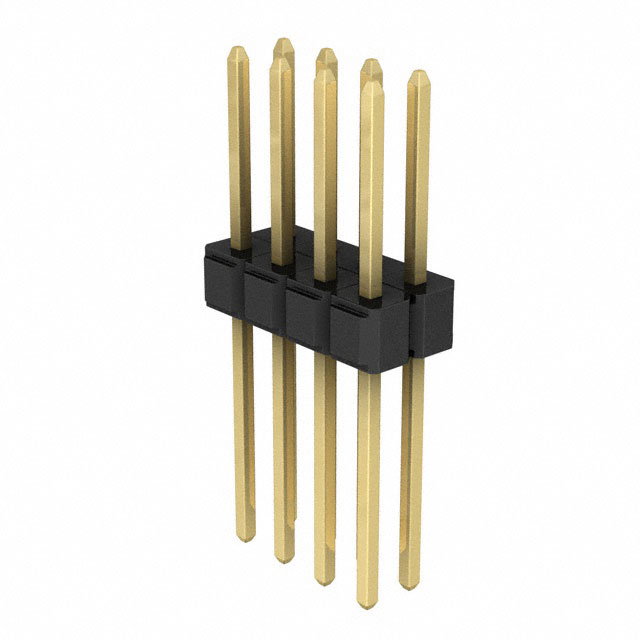

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

929715-03-04-I

Active

3M (TC)

CONN HEADER VERT 8POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929715-03-04-I

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	0.828 in
Overall Contact Length	21.03 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

929715 Series

...

Part	Contact Type	Contact Finish - Post	Current Rating (Amps)	Number of Rows	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Mounting Type	Connector Type	Contact Shape	Number of Positions Loaded	Number of Positions	Material Flammability Rating	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length
3M (TC) 929715-08-11-EU	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	22 positions	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm
3M (TC) 929715-10-28-I	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	56	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm	0.593 in	15.07 mm	4.45 mm	0.175 in
3M (TC) 929715-10-11-EU	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	22 positions	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm	0.593 in	15.07 mm	4.45 mm	0.175 in
3M (TC) 929715-03-04-I	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	8	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm					0.828 in	21.03 mm
3M (TC) 929715-03-09-EU	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	18	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm					0.828 in	21.03 mm
3M (TC) 929715-11-18-I	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	36	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm					0.543 in	13.8 mm	3.18 mm	0.125 in
3M (TC) 929715-01-01-I	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	2	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm					2.79 mm		0.528 in	13.42 mm		0.11 in
3M (TC) 929715-06-36-EU	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	72	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm			18.03 mm	0.71 "		28.65 mm			1.128 "
3M (TC) 929715-06-35-EU	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	70	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm			18.03 mm	0.71 "		28.65 mm			1.128 "
3M (TC) 929715-06-30-I	Male Pin	Gold	2.5 A	2	0.1 in	2.54 mm	0.318 "	8.08 mm	Unshrouded	2.54 mm	0.1 in	Solder	Through Hole	Header	Square	All	60	UL94 V-0	Gold	Copper Alloy	10 çin	0.25 çm	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Push-Pull	-40 °C	105 ░C	Black	10 çin	0.25 çm	0.1 in	2.54 mm			18.03 mm	0.71 "		28.65 mm			1.128 "
