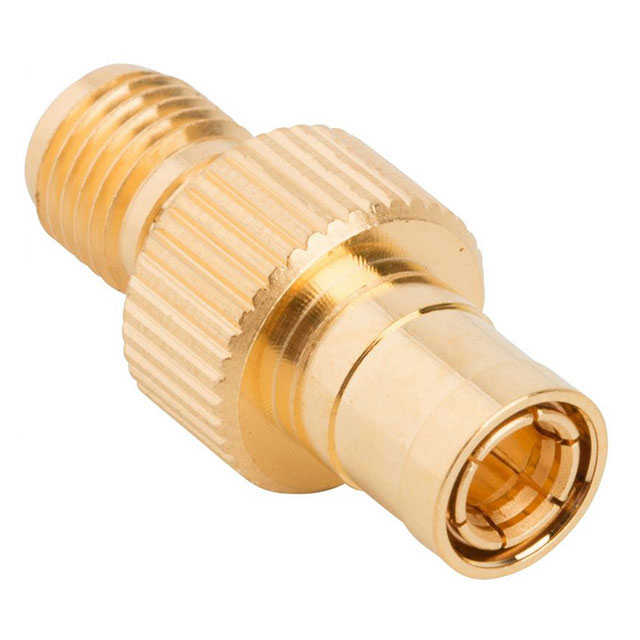

Specification	242145RP

Adapter Series	SMA to RP-SMB
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	SMA Jack, Female Socket
Convert To (Adapter End) Gender	Male Pin
Convert To (Adapter End) Type	RP-SMB Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max	4 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

242145 Series

Part	Body Finish	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Dielectric Material	Center Contact Material	Center Gender	Mounting Type	Style	Conversion Type	Fastening Type	Frequency - Max	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Adapter Type	Impedance	Adapter Series	Center Contact Plating	Convert From (Adapter End)
McGill Microwave Systems 242145RP	Gold	Brass	-65 °C	165 °C	500 cycles	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Female Male	Free Hanging (In-Line)	Straight	Between Series	Snap-On Threaded	4 GHz	Male Pin	RP-SMB Plug	Plug to Jack	50 Ohm	SMA to RP-SMB	Gold	Female Socket SMA Jack
