H8MMS-3018M
ActiveAssmann WSW Components
DIP CBL - HHDM30S/AE30M/HHDM30S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H8MMS-3018M
ActiveAssmann WSW Components
DIP CBL - HHDM30S/AE30M/HHDM30S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H8MMS-3018M | H8MMS-30 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | DIP to DIP, Reversed | DIP to DIP, Reversed |
| Contact Finish | Tin | Tin |
| Length | - | 152.4 mm |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Length [x] | 457.2 mm | 457.2 mm |
| Length [x] | 1.5 ft | 1.5 ft |
| Number of Positions | 30 | 30 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
| Usage | Board In, Socket (0.1") | Board In, Socket (0.1") |
H8MMS-30 Series
DIP CBL - HHDM30S/AE30M/HHDM30S
| Part | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Number of Positions | Usage | Cable Termination | Color | Contact Finish | Length [x] | Length [x] | Shielding | Number of Rows | Connector Type | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components H8MMS-3018M | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 30 | Board In, Socket (0.1") | IDC | Multiple, Ribbon | Tin | 457.2 mm | 1.5 ft | Unshielded | 2 | DIP to DIP, Reversed | |||
Assmann WSW Components H8MMS-3018G | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 30 | Board In, Socket (0.1") | IDC | Tin | 457.2 mm | 1.5 ft | Unshielded | 2 | DIP to DIP, Reversed | ||||
Assmann WSW Components H8MMS-3006M | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 30 | Board In, Socket (0.1") | IDC | Multiple, Ribbon | Tin | Unshielded | 2 | DIP to DIP, Reversed | 152.4 mm | 6 " | 0.5 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.26 | |
| 10 | $ 4.78 | |||
| 25 | $ 4.53 | |||
| 50 | $ 4.42 | |||
| 100 | $ 4.21 | |||
| 250 | $ 3.69 | |||
| 500 | $ 3.58 | |||
| 1000 | $ 3.05 | |||
| 2500 | $ 2.84 | |||
Description
General part information
H8MMS-30 Series

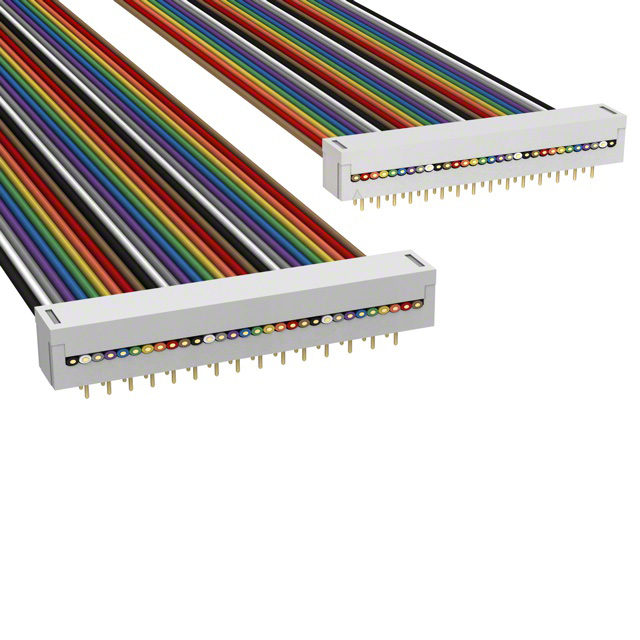

30 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
Documents
Technical documentation and resources
