Specification	BTSW-150-01-T-D-LL

Color	Black
Contact Finish	Tin
Gender	Male Pins
Grid Columns	50
Grid Rows	2
Height	2.54 mm
Housing Material	Liquid Crystal Polymer, LCP
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	100
Pitch	0.1 in
Type	Insulated

BTSW Series

Headers & Wire Housings .100" Low Profile Jumper

Part	Pitch	Type	Color	Contact Finish	Housing Material	Gender	Grid Rows	Grid Columns	Number of Positions or Pins (Grid)	Material Flammability Rating	Height	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness
Samtec Inc. BTSW-120-01-T-S	0.1 in	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	1	20	20	UL94 V-0	2.54 mm
Samtec Inc. BTSW-104-01-T-S-LL	0.1 in	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	1	4	4	UL94 V-0	2.54 mm
Samtec Inc. BTSW-122-01-T-D-001	0.1 in	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	2	22	44	UL94 V-0	2.54 mm

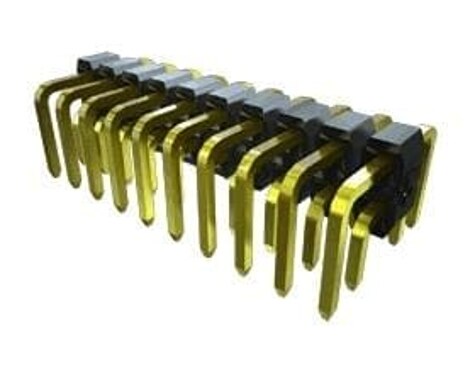

Samtec Inc. BTSW-115-01-F-D	0.1 in	Insulated	Black	Gold	LCP Liquid Crystal Polymer	Male Pins	2	15	30	UL94 V-0	2.54 mm	0	Flash	Flash
Samtec Inc. BTSW-150-01-T-S	0.1 in	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	1	50	50	UL94 V-0	2.54 mm
Samtec Inc. BTSW-103-01-F-S	0.1 in	Insulated	Black	Gold	LCP Liquid Crystal Polymer	Male Pins	1	3	3	UL94 V-0	2.54 mm	0	Flash	Flash
Samtec Inc. BTSW-103-01-T-D	0.1 in	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	2	3	6	UL94 V-0	2.54 mm
Samtec Inc. BTSW-150-01-T-D-LL	0.1 in	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	2	50	100	UL94 V-0	2.54 mm
Samtec Inc. BTSW-208-01-T-D	5.08 mm	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	2	8	16	UL94 V-0	2.54 mm

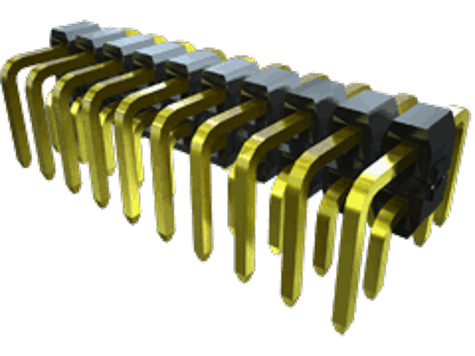

Samtec Inc. BTSW-106-01-T-D	0.1 in	Insulated	Black	Tin	LCP Liquid Crystal Polymer	Male Pins	2	6 count	12 count	UL94 V-0	2.54 mm
