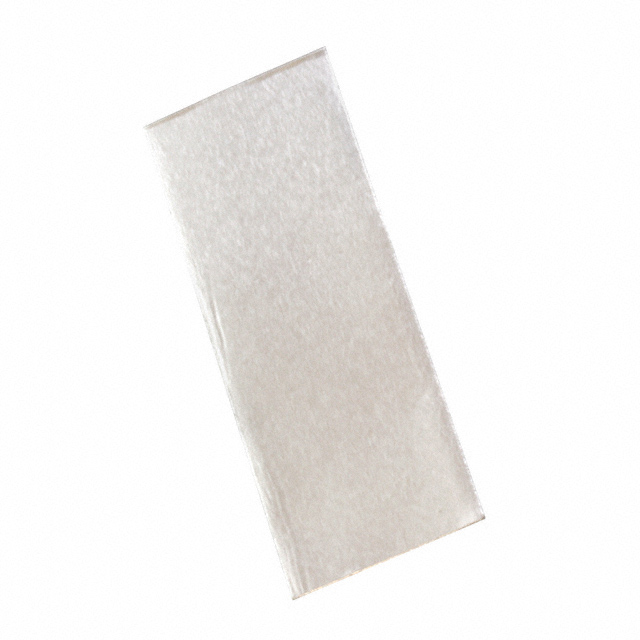

3M 1120 3/4" X 2"-100

Active

3M (TC)

RF SHLDING SHEET 2"X0.75" 100PK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3M 1120 3/4" X 2"-100

Active

3M (TC)

RF SHLDING SHEET 2"X0.75" 100PK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 42.92
		100	$ 34.77

Description

General part information

1120 Series

RF EMI Shielding Sheet 1120 Aluminum Foil Conductive, Single Sided 0.750" (19.05mm) X 2.000" (50.80mm) X 0.004" (0.10mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3M 1120 3/4" X 2"-100	1120 Series

Adhesive	Conductive, Single Sided	Acrylic, Conductive, Single Sided
Backing, Carrier	-	Aluminum Foil
Color	-	Silver
Length	50.8 mm	5.5 - 101.6 m
Length	2 in	0.5 - 18 '
Length	-	6 yds
Length	-	1 in
Length	-	25.4 mm
Material	Aluminum Foil	Aluminum Foil
Shape	Rectangular	Rectangular, Square, Circular
Tape Type	-	Electrical
Thickness	-	0.102 mm
Thickness	-	4 mils
Thickness	-	0.004 in
Thickness - Adhesive	-	2 mils
Thickness - Adhesive	-	0.051 mm
Thickness - Adhesive	-	0.002 "
Thickness - Backing, Carrier	-	0.002 "
Thickness - Backing, Carrier	-	0.051 mm
Thickness - Backing, Carrier	-	2 mils
Thickness - Overall [custom]	0.004 "	0.004 "
Thickness - Overall [custom]	0.1 mm	0.1 mm
Type	Shielding Sheet	Shielding Sheet
Width	-	0.13 - 0.88 in
Width	-	0.125 - 0.875 in
Width	-	3.18 - 254 mm
Width	-	1 - 10 in
Width	-	50.8 mm
Width [y]	0.75 in	0.75 in
Width [y]	19.05 mm	19.05 mm

1120 Series

TAPE ELECTRICAL SILVER 7/8"X6YDS

Part	Backing, Carrier	Tape Type	Width	Width	Width	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Adhesive	Width [y]	Width [y]	Type	Shape	Thickness - Overall [custom]	Thickness - Overall [custom]	Material	Width [x]	Width [x]
3M (TC) 0.875-6-1120	Aluminum Foil	Electrical	0.88 in	0.875 in	22.35 mm	0.102 mm	4 mils	0.004 in	2 mils	0.051 mm	0.002 "	6 yds	5.5 m	18 '	0.002 "	0.051 mm	2 mils	Silver	Acrylic
3M (TC) 3M 1120 3/4" X 4"-100													101.6 mm	4 in					Conductive, Single Sided	0.75 in	19.05 mm	Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil
3M (TC) 0.625-6-1120	Aluminum Foil	Electrical	0.63 in	0.625 in	16 mm	0.102 mm	4 mils	0.004 in	2 mils	0.051 mm	0.002 "	6 yds	5.5 m	18 '	0.002 "	0.051 mm	2 mils	Silver	Acrylic
3M (TC) 3M 1120 3/4" X 3"-100													76.2 mm	3 in					Conductive, Single Sided	0.75 in	19.05 mm	Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil
3M (TC) 3M 1120 1" X 4"-100					25.4 mm								101.6 mm	4 in					Conductive, Single Sided			Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil	1 in
3M (TC) 3M 1120 1/2" X 2"-100													50.8 mm	2 in					Conductive, Single Sided			Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil
3M (TC) 1120-0.125-6	Aluminum Foil	Electrical	0.13 in	0.125 "	3.18 mm	0.102 mm	4 mils	0.004 in	2 mils	0.051 mm	0.002 "	6 yds	5.5 m	18 '	0.002 "	0.051 mm	2 mils	Silver	Acrylic
3M (TC) 3M 1120 3/4" X 2"-100													50.8 mm	2 in					Conductive, Single Sided	0.75 in	19.05 mm	Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil
3M (TC) 3M 1120 2"SQ-100													50.8 mm	2 in					Conductive, Single Sided			Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil	2 in	50.8 mm
3M (TC) 3M 1120 1" X 3"-100					25.4 mm								76.2 mm	3 in					Conductive, Single Sided			Shielding Sheet	Rectangular	0.004 "	0.1 mm	Aluminum Foil	1 in
