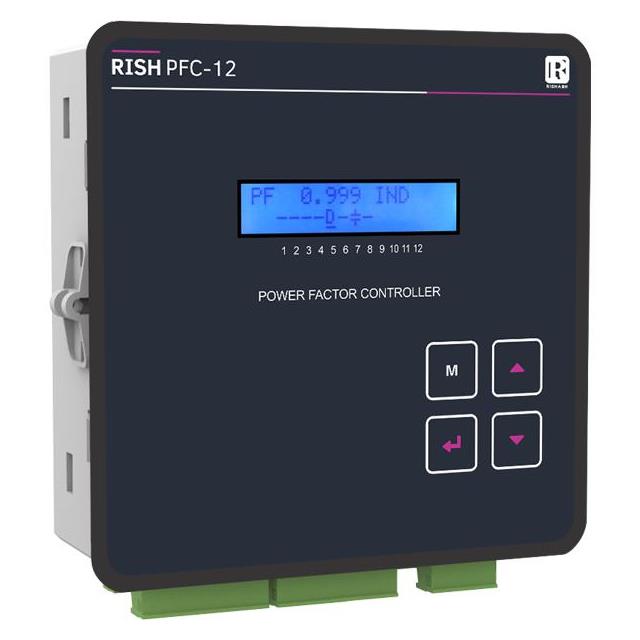

RISH PFC12-8-R-RTC

Active

Rishabh Instruments

POWER FACTOR CTRL'R 8 RLY STAGES

Deep-Dive with AI

Search across all available documentation for this part.

RISH PFC12-8-R-RTC

Active

Rishabh Instruments

POWER FACTOR CTRL'R 8 RLY STAGES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 106.00

Description

General part information

RISH PFC12 Series

Energy Monitor LCD - Black Characters, Blue Backlight Display DIN Rail

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RISH PFC12-8-R-RTC	RISH PFC12 Series

Display Type	LCD - Black Characters, Blue Backlight	LCD - Black Characters, Blue Backlight
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP55 - Dust Protected, Water Resistant
Measuring Range [Max]	550 VAC, 70 Hz, 6 A	6 - 550 VAC
Measuring Range [Min]	30 VAC, 40 Hz, 3 mA	3 - 40 VAC
Measuring Type	Current (3-Phase), Wattage, Voltage	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Type	Serial, Relay (8)	Serial, Relay (8), Relay (6), Relay (12), Relay, Relay (6), Serial
Termination Style	Screw Terminal	Screw Terminal
Type	Energy Monitor	Energy Monitor
Voltage - Supply [Max]	550 VAC	550 VAC
Voltage - Supply [Min]	110 VAC	110 VAC

RISH PFC12 Series

POWER FACTOR CTRL'R 8 RLY STAGES

Part	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Measuring Range [Max]	Measuring Range [Min]	Measuring Type	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Type
Rishabh Instruments RISH PFC12-8-R-RTC	Relay (8), Serial	550 VAC	110 VAC	LCD - Black Characters, Blue Backlight	6 A, 70 Hz, 550 VAC	3 mA, 30 VAC, 40 Hz	Current (3-Phase), Voltage, Wattage	IP55 - Dust Protected, Water Resistant	DIN Rail	-10 °C	60 °C	Screw Terminal	Energy Monitor
Rishabh Instruments RISH PFC12-6-R-Z	Relay (6)	550 VAC	110 VAC	LCD - Black Characters, Blue Backlight	6 A, 70 Hz, 550 VAC	3 mA, 30 VAC, 40 Hz	Current (3-Phase), Voltage, Wattage	IP55 - Dust Protected, Water Resistant	DIN Rail	-10 °C	60 °C	Screw Terminal	Energy Monitor
Rishabh Instruments RISH PFC12-12-R-RTC	Relay (12), Serial	550 VAC	110 VAC	LCD - Black Characters, Blue Backlight	6 A, 70 Hz, 550 VAC	3 mA, 30 VAC, 40 Hz	Current (3-Phase), Voltage, Wattage	IP55 - Dust Protected, Water Resistant	DIN Rail	-10 °C	60 °C	Screw Terminal	Energy Monitor
Rishabh Instruments RISH PFC12-12-Z-Z	Relay	550 VAC	110 VAC	LCD - Black Characters, Blue Backlight	6 A, 70 Hz, 550 VAC	3 mA, 30 VAC, 40 Hz	Current (3-Phase), Voltage, Wattage	IP55 - Dust Protected, Water Resistant	DIN Rail	-10 °C	60 °C	Screw Terminal	Energy Monitor
Rishabh Instruments RISH PFC12-6-R-RTC	Relay (6), Serial	550 VAC	110 VAC	LCD - Black Characters, Blue Backlight	6 A, 70 Hz, 550 VAC	3 mA, 30 VAC, 40 Hz	Current (3-Phase), Voltage, Wattage	IP55 - Dust Protected, Water Resistant	DIN Rail	-10 °C	60 °C	Screw Terminal	Energy Monitor
Rishabh Instruments RISH PFC12-12-R-Z	Relay	550 VAC	110 VAC	LCD - Black Characters, Blue Backlight	6 A, 70 Hz, 550 VAC	3 mA, 30 VAC, 40 Hz	Current (3-Phase), Voltage, Wattage	IP55 - Dust Protected, Water Resistant	DIN Rail	-10 °C	60 °C	Screw Terminal	Energy Monitor
