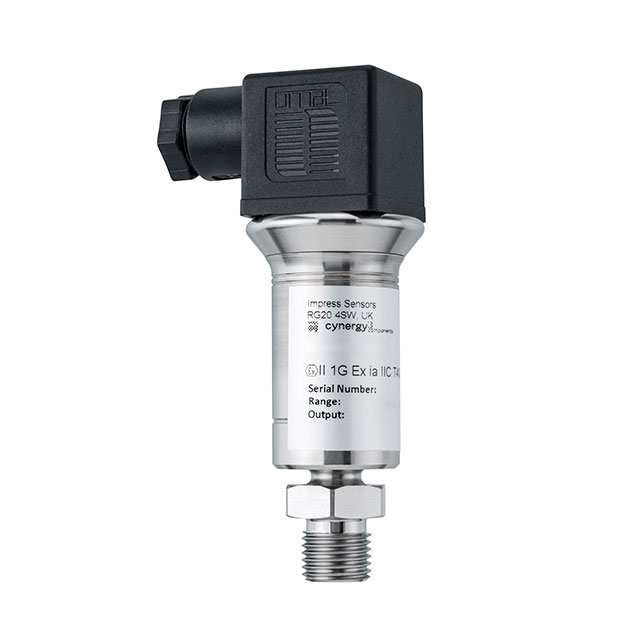

IPSUAT-GP075-5

Obsolete

Sensata Technologies

PRESSURE TRANS 0-75PSIG 4-20MA

Search across all available documentation for this part.

Obsolete

Sensata Technologies

PRESSURE TRANS 0-75PSIG 4-20MA

Technical Specifications

Parameters and characteristics for this part

Specification	IPSUAT-GP075-5

Accuracy	0.25 %
Applications	Industrial Automation
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	1034.21 kPa
Maximum Pressure [Max]	150 PSI
Operating Pressure	517.11 kPa
Operating Pressure	75 PSI
Output [Max]	20 mA
Output [Min]	4 mA
Output Type	Analog Current
Package / Case	Chassis Mount
Port Size [custom]	NPT
Port Size [custom]	Male
Port Size [x]	0.25 "
Port Size [x]	6.35 mm
Port Style	Threaded
Pressure Type	Gauge
Termination Style	Connector

Part	Termination Style	Accuracy	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Applications	Port Style	Package / Case	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Operating Pressure	Operating Pressure	Output Type	Output [Max]	Output [Min]
Sensata Technologies IPSUAT-GP075-5	Connector	0.25 %	NPT	0.25 "	6.35 mm	Male	Industrial Automation	Threaded	Chassis Mount	Gauge	1034.21 kPa	150 PSI	Amplified Output Temperature Compensated	517.11 kPa	75 PSI	Analog Current	20 mA	4 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PRESSURE TRANS 0-75PSIG 4-20MA
