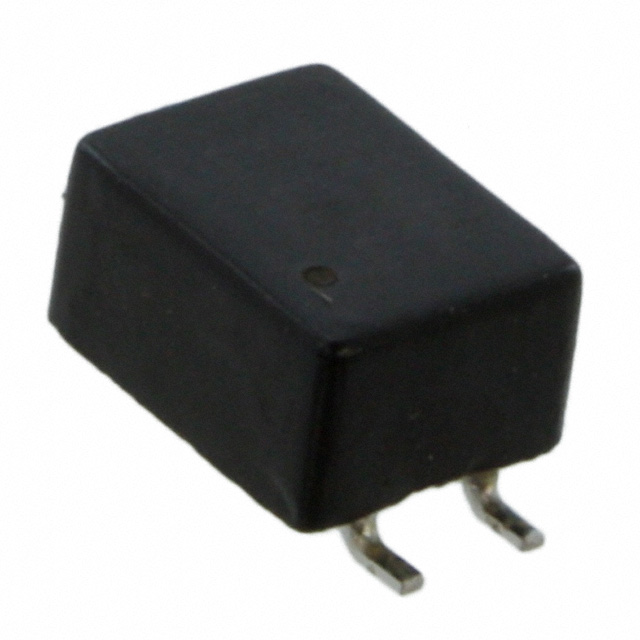

DR331-225BE
ActiveBourns Inc.
CMC 2.2MH 300MA 2LN SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DR331-225BE
ActiveBourns Inc.
CMC 2.2MH 300MA 2LN SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DR331-225BE |
|---|---|
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) [Max] | 700 mOhm |
| Height (Max) [Max] | 5 mm |
| Height (Max) [Max] | 0.197 in |
| Inductance @ Frequency | 2.2 mH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal, 4 Flat Lead |
| Size / Dimension [x] | 0.287 in |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [y] | 5.4 mm |
| Size / Dimension [y] | 0.213 " |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 80 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.74 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.40 | |||
| Digi-Reel® | 1 | $ 0.74 | ||
| 10 | $ 0.63 | |||
| 25 | $ 0.57 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.41 | |||
| 500 | $ 0.40 | |||
| Tape & Reel (TR) | 1500 | $ 0.40 | ||
Description
General part information
DR331 Series
2.2 mH @ 100 kHz 2 Line Common Mode Choke Surface Mount 300mA DCR 700mOhm
