892-074-500-212

Active

EDAC Inc.

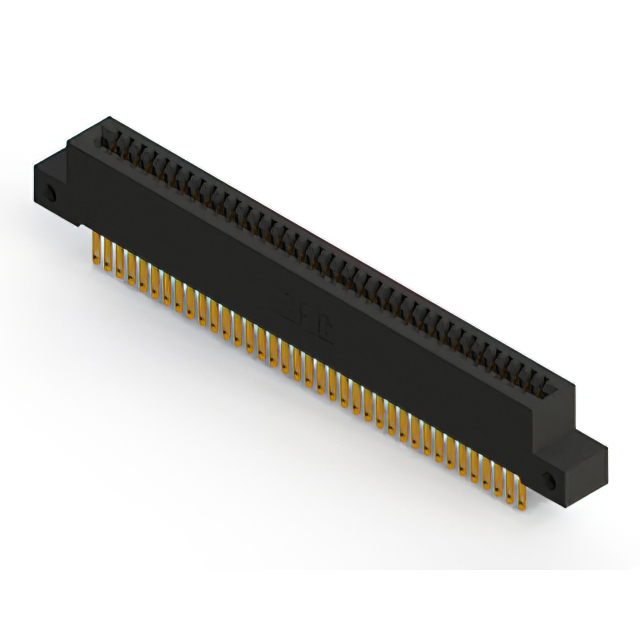

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

892-074-500-212

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-074-500-212

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

892-074 Series

Part	Contact Material	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Color	Gender	Contact Finish	Contact Type	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Mounting Type	Number of Positions	Read Out	Number of Rows	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Termination Rows	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 892-074-520-201	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Solder	125 °C	-40 °C
EDAC Inc. 892-074-542-204	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Wire Wrap	125 °C	-40 °C	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 892-074-500-212	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Solder Eyelet(s)	125 °C	-40 °C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 892-074-540-202	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Wire Wrap	125 °C	-40 °C	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 892-074-524-201	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Solder	125 °C	-40 °C
EDAC Inc. 892-074-521-212	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Solder	125 °C	-40 °C	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 892-074-559-203	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole Right Angle	74	Dual	2	37	37	37	2	Solder	125 °C	-40 °C	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 892-074-544-204	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Wire Wrap	125 °C	-40 °C	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 892-074-524-204	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Through Hole	74	Dual	2	37	37	37	2	Solder	125 °C	-40 °C	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 892-074-556-201	Copper Alloy	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	Black	Female	Gold	Cantilever	2.54 mm	0.1 in	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Board Edge Straddle Mount	74	Dual	2	37	37	37	2	Solder	125 °C	-40 °C				Card Extender
