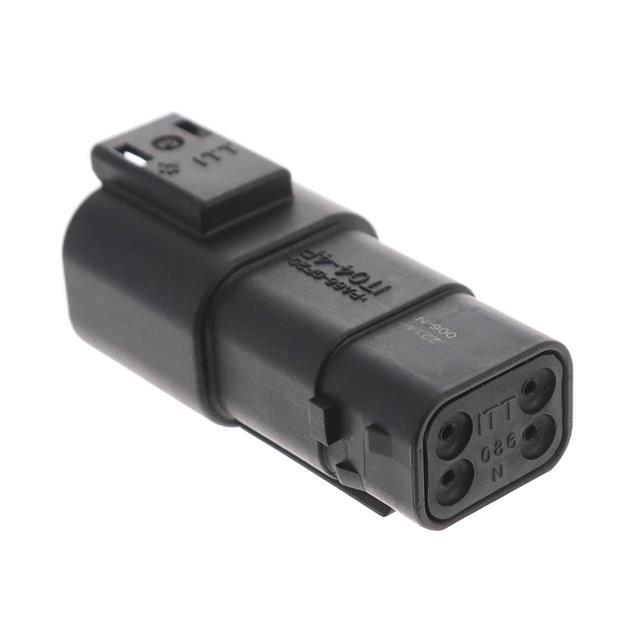

IT04-4P-006-N

Active

ITT Cannon, LLC

CONN RCPT HSG 4POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN RCPT HSG 4POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT04-4P-006-N

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Fastening Type	Color	Number of Positions	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Termination	Insulation Material	Contact Type	Connector Type	Features
ITT Cannon, LLC IT04-4P-006-N	Latch Holder	Black	4	2	-55 °C	125 °C	Free Hanging (In-Line)	Crimp	Glass Filled Nylon Polyamide (PA)	Male Pin	Receptacle
ITT Cannon, LLC IT04-4P-006	Latch Holder	Black	4	2	-55 °C	125 °C	Free Hanging (In-Line)	Crimp	Glass Filled Nylon Polyamide (PA)	Male Pin	Receptacle
ITT Cannon, LLC IT04-4P-004	Latch Holder	Black	4	2	-55 °C	125 °C	Free Hanging (In-Line)	Crimp	Glass Filled Nylon Polyamide (PA)	Male Pin	Receptacle	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT04-4P-004-N	Latch Holder	Black	4	2	-55 °C	125 °C	Free Hanging (In-Line)	Crimp	Glass Filled Nylon Polyamide (PA)	Male Pin	Receptacle	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT04-4P-002	Latch Holder	Gray	4	2	-55 °C	125 °C	Free Hanging (In-Line)	Crimp	Glass Filled Nylon Polyamide (PA)	Male Pin	Receptacle
ITT Cannon, LLC IT04-4P-000-N	Latch Holder	Gray	4	2	-55 °C	125 °C	Free Hanging (In-Line)	Crimp	Glass Filled Nylon Polyamide (PA)	Male Pin	Receptacle	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT04-4P-000	Latch Holder	Gray	4	2	-55 °C	125 °C	Free Hanging (In-Line)	Crimp	Glass Filled Nylon Polyamide (PA)	Male Pin	Receptacle	Cap (Cover) IP67 IP68 IP69K Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Receptacle Black
