1106436-6
ActiveTE Connectivity AMP Connectors

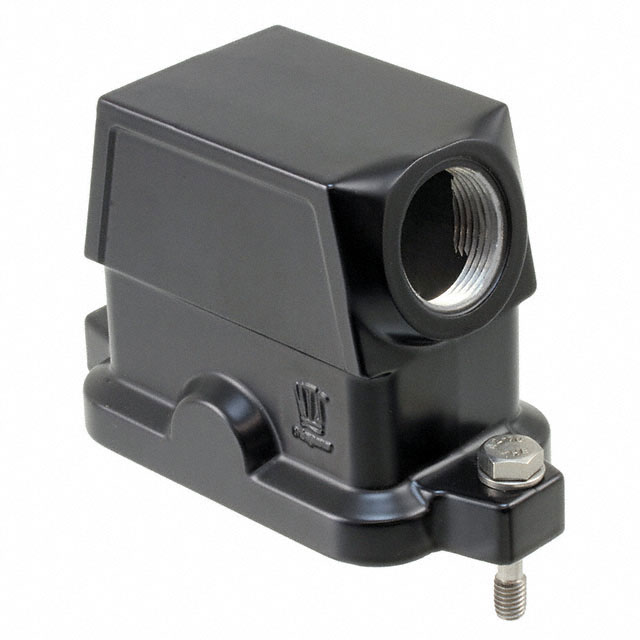

CONN HOOD SIDE ENTRY SZ4 M32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1106436-6
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ4 M32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1106436-6 | 1106436 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Black | Black, Gray |
| Housing Finish | Aluminum Oxide | Aluminum Oxide, Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP68, IP69K | IP68, IP69K |
| Lock Location | Screw Locks on Hood | Screw Locks on Hood |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 80 C |
| Size | 4 | 4 |
| Size / Dimension [x] | 4.291 in | 4.291 in |
| Size / Dimension [x] | 109 mm | 109 mm |
| Size / Dimension [y] | 2.087 in | 2.087 in |
| Size / Dimension [y] | 53 mm | 53 mm |
| Size / Dimension [z] | 2.756 in | 2.756 in |
| Size / Dimension [z] | 70 mm | 70 mm |
| Style | Side Entry | Side Entry, Top Entry |
| Thread Size | M32 | M32, M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 163.46 | |
1106436 Series
CONN HOOD SIZE 4 M32
| Part | Ingress Protection | Size | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Housing Color | Thread Size | Lock Location | Connector Type | Housing Finish | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106436-5 | IP68, IP69K | 4 | Aluminum Alloy, Die Cast | -40 °C | 80 C | 2.087 in | 4.291 in | 109 mm | 2.756 in | 53 mm | 70 mm | Black | M32 | Screw Locks on Hood | Hood | Aluminum Oxide | |
TE Connectivity AMP Connectors 1106436-6 | IP68, IP69K | 4 | Aluminum Alloy, Die Cast | 2.087 in | 4.291 in | 109 mm | 2.756 in | 53 mm | 70 mm | Black | M32 | Screw Locks on Hood | Hood | Aluminum Oxide | Side Entry | ||
TE Connectivity AMP Connectors 1106436-1 | IP68, IP69K | 4 | Aluminum Alloy, Die Cast | 2.087 in | 4.291 in | 109 mm | 2.756 in | 53 mm | 70 mm | Gray | M25 | Screw Locks on Hood | Hood | Powder Coated | Top Entry |
Description
General part information
1106436 Series
Hood Connector Side Entry M32 4 IP68/IP69K - Dust Tight, Water Resistant, Waterproof
