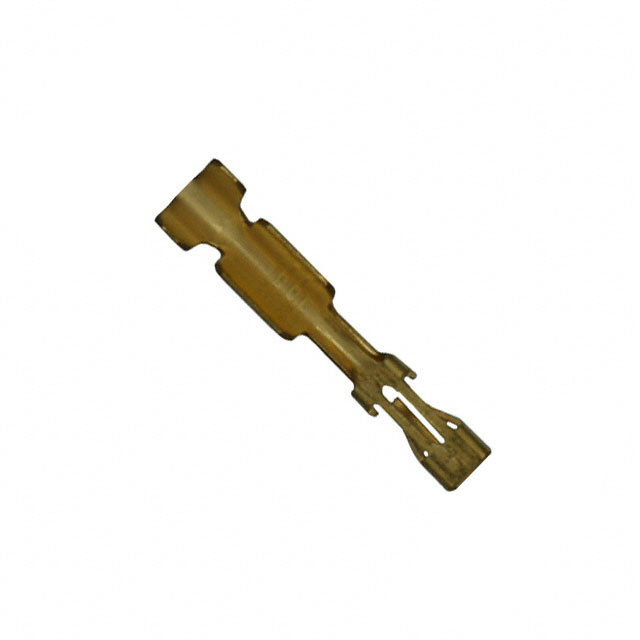

86492-2

Active

TE Connectivity AMP Connectors

CONN SOCKET 20-24AWG CRIMP GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SOCKET 20-24AWG CRIMP GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN SOCKET 20-24AWG CRIMP TIN

Part	Contact Finish	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Termination
TE Connectivity AMP Connectors 86492-9	Tin	Socket	20 AWG	24 AWG	78 µin	1.98 µm	Crimp
TE Connectivity AMP Connectors 86492-2	Gold	Socket	20 AWG	24 AWG	15 µin	0.38 µm	Crimp
TE Connectivity AMP Connectors 86492-6	Gold	Socket	20 AWG	24 AWG	30 Áin	0.76 Ám	Crimp
TE Connectivity AMP Connectors 86492-4	Gold	Socket	20 AWG	24 AWG	30 Áin	0.76 Ám	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	62500	$ 0.28

General part information

Socket Contact Gold 20-24 AWG Crimp

Technical documentation and resources
