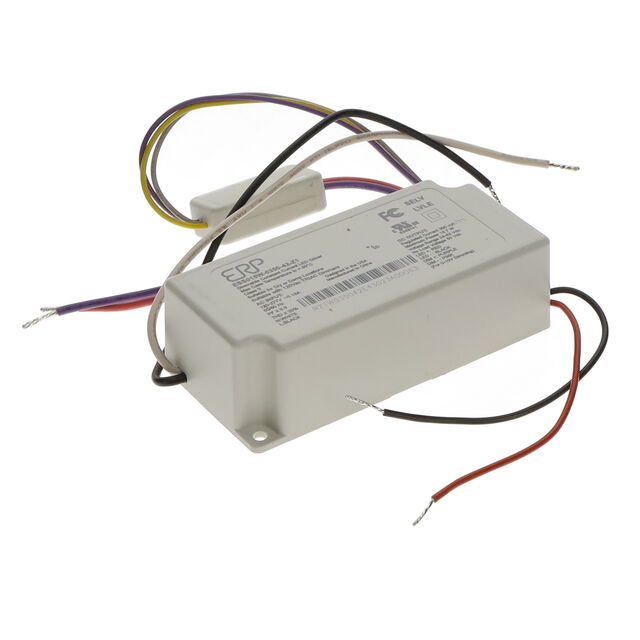

ESS015W-0350-42-Z1

Active

ERP Power, LLC

AC/DC LED POWER SUPPLY 14.7W SINGLE

Deep-Dive with AI

Search across all available documentation for this part.

ESS015W-0350-42-Z1

Active

ERP Power, LLC

AC/DC LED POWER SUPPLY 14.7W SINGLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.33
		50	$ 20.66
		100	$ 20.00

Description

General part information

ESS015W Series

350mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESS015W-0350-42-Z1	ESS015W Series

Approval Agency	CE, cURus	CE, cURus, CB, CE, NEMKO, cRUcs, KC, FC, CCC, ENEC, CSA, SA, UL, cUL
Current - Output (Max) [Max]	350 mA	1 - 700 mA
Dimming	ELV, Analog, TRIAC	ELV, Analog, TRIAC
Efficiency	87 %	87 %
Features	OTP, SCP, OCP	OTP, SCP, OCP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature	194 °F	194 °F
Operating Temperature	-	-30 ░C
Operating Temperature	-	90 °C
Power (Watts)	15 W	11 - 15 W
Ratings	IP64	IP64, NEMA 410
Size / Dimension [x]	3.3 "	3.3 "
Size / Dimension [x]	83.8 mm	83.8 mm
Size / Dimension [y]	1.57 "	1.57 "
Size / Dimension [y]	39.9 mm	39.9 mm
Size / Dimension [z]	25.1 mm	25.1 mm
Size / Dimension [z]	0.99 "	0.99 "
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current
Voltage - Input (Max) [Max]	277 VAC	277 VAC
Voltage - Input (Min) [Min]	120 VAC	120 VAC
Voltage - Output [Max]	42 V	12 - 42 V
Voltage - Output [Min]	28 V	6 - 28 V
Weight	-	154 g
Weight	-	0.34 lb

ESS015W Series

AC/DC LED POWER SUPPLY 14.7W SINGLE

Part	Ratings	Mounting Type	Type	Power (Watts)	Features	Number of Outputs	Approval Agency	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Voltage - Input (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Topology	Operating Temperature
ERP Power, LLC ESS015W-0350-42-Z1	IP64	Chassis Mount	Constant Current	15 W	OCP, OTP, SCP	1	CE, cURus	Wire Leads	28 V	42 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	350 mA	120 VAC	87 %	AC DC Converter	194 °F
ERP Power, LLC ESS015W-0350-32	IP64	Chassis Mount	Constant Current	11 W	OCP, OTP, SCP	1	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	Wire Leads	21 V	32 VDC	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	350 mA	120 VAC	87 %	AC DC Converter
ERP Power, LLC ESS015W-0300-42	IP64	Chassis Mount	Constant Current	13 W	OCP, OTP, SCP	1	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	Wire Leads	28 V	42 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	300 mA	120 VAC	87 %	AC DC Converter
ERP Power, LLC ESS015W-0350-42	IP64	Chassis Mount	Constant Current	15 W	OCP, OTP, SCP	1	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	Wire Leads	28 V	42 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	350 mA	120 VAC	87 %	AC DC Converter
ERP Power, LLC ESS015W-0440-34	IP64	Chassis Mount	Constant Current	15 W	OCP, OTP, SCP	1	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	Wire Leads	28 V	34 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	440 mA	120 VAC	87 %	AC DC Converter
ERP Power, LLC ESS015W-0700-18	IP64	Chassis Mount	Constant Current	13 W	OCP, OTP, SCP	1	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	Wire Leads	10 V	18 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	700 mA	120 VAC	87 %	AC DC Converter
ERP Power, LLC ESS015W-0440-25	IP64	Chassis Mount	Constant Current	11 W	OCP, OTP, SCP	1	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	Wire Leads	19 V	25 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	440 mA	120 VAC	87 %	AC DC Converter
ERP Power, LLC ESS015W-1050-14-Z1	IP64	Chassis Mount	Constant Current	15 W	OCP, OTP, SCP	1	CE, cURus	Wire Leads	8 V	14 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	1.05 A	120 VAC	87 %	AC DC Converter	194 °F
ERP Power, LLC ESS015W-1050-14	IP64	Chassis Mount	Constant Current	15 W	OCP, OTP, SCP	1	CB, CCC, CE, cRUcs, CSA, ENEC, FC, KC, NEMKO, SA, UL	Wire Leads	8 V	14 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	1.05 A	120 VAC	87 %	AC DC Converter
ERP Power, LLC ESS015W-0700-18-Z1	IP64	Chassis Mount	Constant Current	13 W	OCP, OTP, SCP	1	CE, cURus	Wire Leads	10 V	18 V	Analog, ELV, TRIAC	277 VAC	25.1 mm	1.57 "	0.99 "	39.9 mm	3.3 "	83.8 mm	700 mA	120 VAC	87 %	AC DC Converter	194 °F
