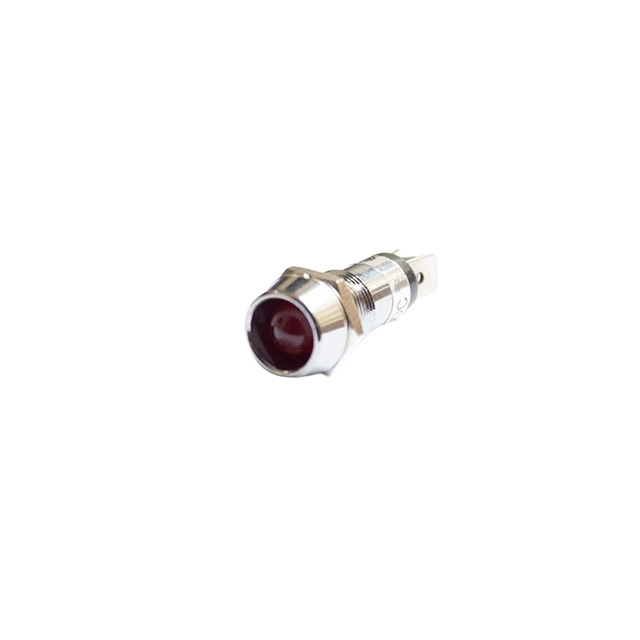

LM2-8-1-R

Active

Switch Components

LED INDICATOR 8MM - RED, SCREW

Search across all available documentation for this part.

Active

Switch Components

LED INDICATOR 8MM - RED, SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

LED INDICATOR 8MM - RED, SCREW

Part	Voltage	Viewing Angle	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Lens Color	Panel Cutout Shape	Lens Style	Lamp Color	Lens Size [diameter]	Type	Termination Style	Millicandela Rating
Switch Components LM2-8-1-R	2 V	30 °	11.2 mm	0.44 in	Diffused	Red	Round	Round with Protrusive Head	Red	8 mm	LED	Quick Connect - 0.250" (6.3mm)	100 mcd
Switch Components LM2-8-1-G	2.1 V	30 °	11.2 mm	0.44 in	Diffused	Green	Round	Round with Protrusive Head	Green	8 mm	LED	Quick Connect - 0.250" (6.3mm)	50 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 30° 2V 20mA Quick Connect - 0.250" (6.3mm)
