PF20016 NA005

Active

ALPHA WIRE

SLEEVING 0.051" ID FBRGLASS 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.051" ID FBRGLASS 100'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PF20016 NA005	PF20016 Series

Abrasion Protection	Abrasion Resistant, Fray Resistant	Abrasion Resistant, Fray Resistant
Color	Natural	Natural
Diameter - Inside [diameter]	0.051 in	0.051 in
Diameter - Inside [diameter]	1.3 mm	1.3 mm
Diameter - Outside [diameter]	2.31 mm	2.31 mm
Diameter - Outside [diameter]	0.091 in	0.091 in
Environment Protection	Corrosion Resistant	Corrosion Resistant
Features	Clean Cut	Clean Cut
Length	100 ft	100 - 1000 ft
Length	30.48 m	30.48 - 304.8 m
Material	Fiberglass, Silicone Coated	Fiberglass, Silicone Coated
Material Flammability Rating	UL VW-1	UL VW-1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-70 °C	-70 °C
Type	Sleeving	Sleeving
Type Attributes	Braided	Braided
Wall Thickness	0.38 mm	0.38 mm
Wall Thickness	0.015 in	0.015 in

SLEEVING 0.051" ID FBRGLASS 100'

Part	Type Attributes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length	Length	Type	Material	Environment Protection	Wall Thickness	Wall Thickness	Material Flammability Rating	Abrasion Protection	Features	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Color	Operating Temperature [Max]	Operating Temperature [Min]
ALPHA WIRE PF20016 NA005	Braided	2.31 mm	0.091 in	100 ft	30.48 m	Sleeving	Fiberglass, Silicone Coated	Corrosion Resistant	0.38 mm	0.015 in	UL VW-1	Abrasion Resistant, Fray Resistant	Clean Cut	0.051 in	1.3 mm	Natural	200 °C	-70 °C
ALPHA WIRE PF20016 NA001	Braided	2.31 mm	0.091 in	1000 ft	304.8 m	Sleeving	Fiberglass, Silicone Coated	Corrosion Resistant	0.38 mm	0.015 in	UL VW-1	Abrasion Resistant, Fray Resistant	Clean Cut	0.051 in	1.3 mm	Natural	200 °C	-70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

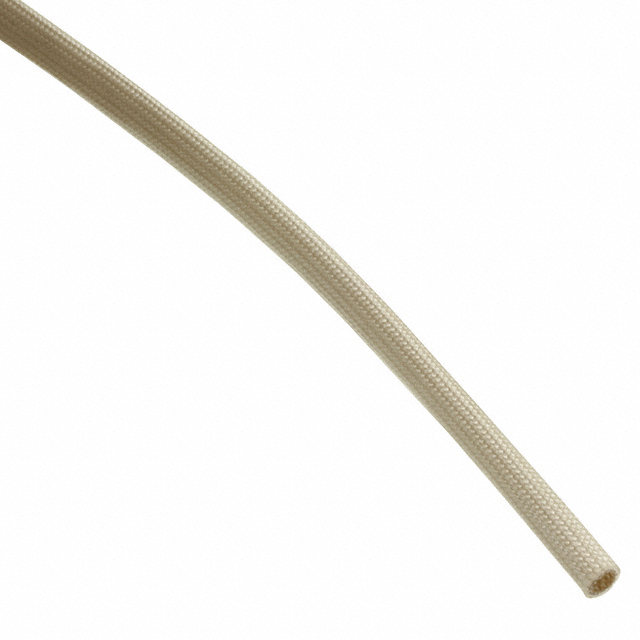

Natural Fiberglass, Silicone Coated Braided Sleeving 0.051" (1.30mm) 100' (30.48m)
