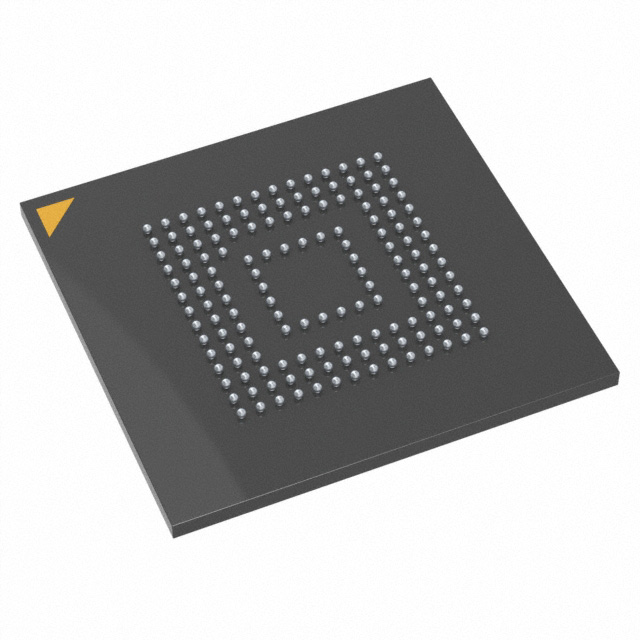

NSEC53K004-AT

Active

Insignis Technology Corporation

IC FLASH 32GBIT EMMC 153FBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NSEC53K004-AT

Active

Insignis Technology Corporation

IC FLASH 32GBIT EMMC 153FBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1520	$ 17.48

Description

General part information

NSEC53 Series

FLASH - NAND (MLC) Memory IC 32Gbit eMMC_5 200 MHz 153-FBGA (11.5x13)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NSEC53K004-AT	NSEC53 Series

Clock Frequency	200 MHz	200 MHz
Memory Format	FLASH	FLASH
Memory Interface	eMMC_5	eMMC_5.1, eMMC_5, eMMC
Memory Organization	-	2 - 128 G
Memory Size	32 Gbit	1 - 256 MB
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Package / Case	153-VFBGA	153-VFBGA
Supplier Device Package	153-FBGA	153-FBGA
Supplier Device Package [x]	11.5	11.5
Supplier Device Package [y]	13	13
Technology	FLASH - NAND (MLC)	FLASH - NAND (TLC), FLASH - NAND (pSLC), FLASH - NAND (MLC)
Voltage - Supply	3.3 V	3.3 V
Voltage - Supply	-	2.7 V
Voltage - Supply	-	3.6 V

NSEC53 Series

IC FLASH 512GBIT EMMC 153FBGA

Part	Memory Interface	Memory Type	Clock Frequency	Mounting Type	Memory Format	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Memory Organization	Memory Size	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Supply
Insignis Technology Corporation NSEC53T064-IT	eMMC_5.1	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	64 G	64 MB	153-VFBGA	2.7 V	3.6 V	85 °C	-40 °C	FLASH - NAND (TLC)
Insignis Technology Corporation NSEC53T008-ITJ	eMMC_5.1	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	8 G	64 Gbit	153-VFBGA	2.7 V	3.6 V	85 °C	-40 °C	FLASH - NAND (pSLC)
Insignis Technology Corporation NSEC53T016-IT	eMMC_5.1	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	16 G	128 Mb	153-VFBGA	2.7 V	3.6 V	85 °C	-40 °C	FLASH - NAND (TLC)
Insignis Technology Corporation NSEC53T032-AT	eMMC_5.1	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	32 G	256 Gbit	153-VFBGA	2.7 V	3.6 V	85 °C	-40 °C	FLASH - NAND (TLC)
Insignis Technology Corporation NSEC53K004-AT	eMMC_5	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13		32 Gbit	153-VFBGA			85 °C	-40 °C	FLASH - NAND (MLC)	3.3 V
Insignis Technology Corporation NSEC53T064-AT	eMMC_5.1	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	64 G	64 MB	153-VFBGA	2.7 V	3.6 V	85 °C	-40 °C	FLASH - NAND (TLC)
Insignis Technology Corporation NSEC53K004-ITJ	eMMC_5	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13		32 Gbit	153-VFBGA			85 °C	-40 °C	FLASH - NAND (pSLC)	3.3 V
Insignis Technology Corporation NSEC53K008-AT	eMMC_5	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	8 G	64 Gbit	153-VFBGA			85 °C	-40 °C	FLASH - NAND (MLC)	3.3 V
Insignis Technology Corporation NSEC53T128-AT	eMMC_5.1	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	128 G	1 Mpts	153-VFBGA	2.7 V	3.6 V	85 °C	-40 °C	FLASH - NAND (TLC)
Insignis Technology Corporation NSEC53K016-AT	eMMC_5	Non-Volatile	200 MHz	Surface Mount	FLASH	11.5	153-FBGA	13	16 G	128 Mb	153-VFBGA			85 °C	-40 °C	FLASH - NAND (MLC)	3.3 V
