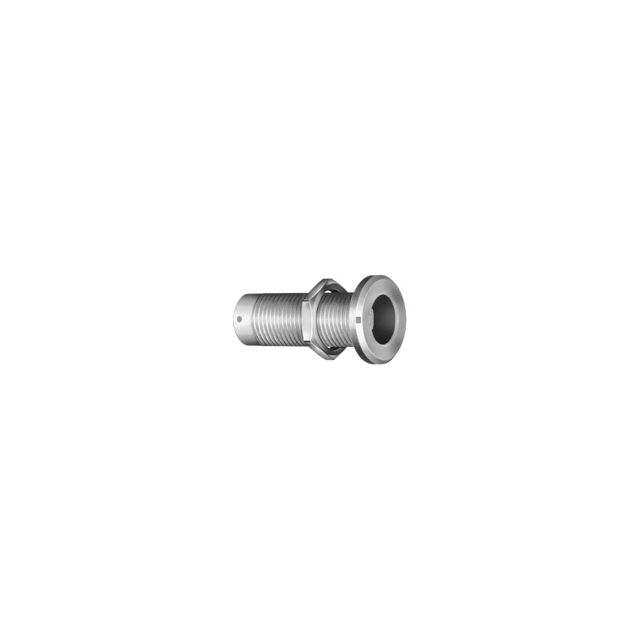

SGJ.0B.307.CLLPV

Active

LEMO

CONN ADAPTER 7P-7P F-M PNL MNT

Search across all available documentation for this part.

Active

LEMO

CONN ADAPTER 7P-7P F-M PNL MNT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 150.22

General part information

Circular Connector Standard 7/7 Female Sockets/Male Pins Panel Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	SGJ.0B.307.CLLPV	SGJ.0B Series

Connector Style	Standard	Standard
Convert From (Adapter End)	Female Sockets	Female Sockets
Convert To (Adapter End)	Male Pins	Male Pins
Current Rating (Amps)	2.5 A	2.5 - 10 A
Fastening Type	Push-Pull	Push-Pull
Features	Mounting Hardware, Vacuumtight	Mounting Hardware, Vacuumtight
Housing Color	Silver	Silver
Housing Finish	Chrome	Chrome
Housing Material	Brass	Brass
Includes	1 Adapter, 1 Nut	1 Adapter, 1 Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	7	2 - 7
Number of Positions (Convert To)	7	2 - 7
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Orientation (Convert From)	G	G
Orientation (Convert To)	J	J
Shell Size - Insert (Convert From)	307	302 - 307
Shell Size - Insert (Convert To)	-	302
Shell Size - Insert (Convert To) [custom]	307	307
Shielding	Shielded	Shielded

CONN ADAPTER 7P-7P F-M PNL MNT

Part	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Convert To (Adapter End)	Connector Style	Ingress Protection	Orientation (Convert To)	Fastening Type	Shell Size - Insert (Convert From)	Mounting Feature	Includes	Orientation (Convert From)	Shell Size - Insert (Convert To) [custom]	Housing Material	Convert From (Adapter End)	Number of Positions (Convert To)	Number of Positions (Convert From)	Shielding	Housing Color	Shell Size - Insert (Convert To) [custom]
LEMO SGJ.0B.307.CLLPV	2.5 A	Mounting Hardware, Vacuumtight	100 °C	-20 C	Chrome	Male Pins	Standard	IP68 - Dust Tight, Waterproof	J	Push-Pull	307	Bulkhead - Rear Side Nut	1 Adapter, 1 Nut	G	307	Brass	Female Sockets	7	7	Shielded	Silver
LEMO SGJ.0B.302.CLLPV	10 A	Mounting Hardware, Vacuumtight	100 °C	-20 C	Chrome	Male Pins	Standard	IP68 - Dust Tight, Waterproof	J	Push-Pull	302	Bulkhead - Rear Side Nut	1 Adapter, 1 Nut	G		Brass	Female Sockets	2	2	Shielded	Silver	302
LEMO SGJ.0B.305.CLLPV	6.5 A	Mounting Hardware, Vacuumtight	100 °C	-20 C	Chrome	Male Pins	Standard	IP68 - Dust Tight, Waterproof	J	Push-Pull	305	Bulkhead - Rear Side Nut	1 Adapter, 1 Nut	G		Brass	Female Sockets	5	5	Shielded	Silver
LEMO SGJ.0B.305.CLLP	6.5 A	Mounting Hardware	100 °C	-20 C	Chrome	Male Pins	Standard	IP68 - Dust Tight, Waterproof	J	Push-Pull	305	Bulkhead - Rear Side Nut	1 Adapter, 1 Nut	G		Brass	Female Sockets	5	5	Shielded	Silver
