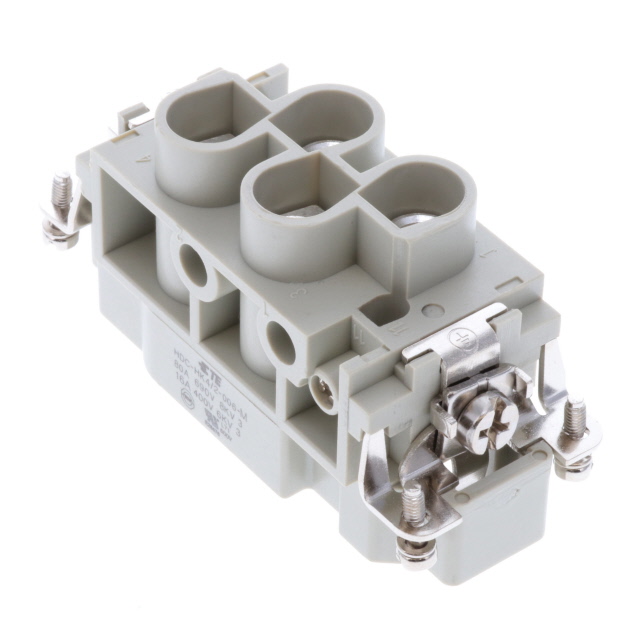

T2100062101-000
ActiveTE Connectivity AMP Connectors
HK4/2-006-M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T2100062101-000
ActiveTE Connectivity AMP Connectors
HK4/2-006-M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2100062101-000 | T210 Series |
|---|---|---|
| Color | - | Gray |
| Connector Type | - | Insert without Contacts |
| Contact Finish | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | - | DDF, CDF |
| Current Rating (Amps) | 16 A, 80 A | 10 - 80 A |
| Gender | Male | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 4, 2 | 2 - 4 |
| Number of Positions | Ground | Ground, 8+24+Ground, 10+Ground, 16+Ground, 6+Ground, 4+Ground |
| Number of Positions | - | Ground |
| Number of Positions | - | 6 |
| Number of Positions | - | 6 |
| Number of Positions | - | 4 |
| Number of Positions | - | 8 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16B | H16B, H24B, H10B, H6B |
| Termination Style | Screw | Screw, Crimp, Terminal Block, Straight - Push In |
| Voltage Rating | 400 V, 690 V | 160 - 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.73 | |
| 12 | $ 24.10 | |||
| 28 | $ 22.70 | |||
| 52 | $ 21.73 | |||
| 100 | $ 20.75 | |||
| 252 | $ 19.45 | |||
| 500 | $ 18.60 | |||
T210 Series
HWK6/6-012-F
| Part | Housing Material | Voltage Rating | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Termination Style | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Size | Material Flammability Rating | Current Rating (Amps) | Gender | Number of Positions [custom] | Number of Positions [custom] | Number of Positions | Number of Positions | Contact Type | Connector Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2106062201-000 | Polycarbonate (PC) | 400 V, 690 V | Ground | 6 | 6 | Screw | Silver | 125 °C | -40 °C | Copper Alloy | H16B | UL94 V-0 | 16 A | Female | |||||||
TE Connectivity AMP Connectors T2100122201-000 | Polycarbonate (PC) | 400 V | Ground | Screw | Silver | 125 °C | -40 °C | Copper Alloy | H24B | UL94 V-0 | 16 A, 80 A | Female | 4 | 8 | |||||||
TE Connectivity AMP Connectors T2100062101-000 | Polycarbonate (PC) | 400 V, 690 V | Screw | Silver | 125 °C | -40 °C | Copper Alloy | H16B | UL94 V-0 | 16 A, 80 A | Male | 2, 4 | Ground | ||||||||
TE Connectivity AMP Connectors T2100322201-000 | Polycarbonate (PC) | 160 V, 400 V | Crimp | 125 °C | -40 °C | H10B | UL94 V-0 | 10 A, 16 A | Female | 8+24+Ground | CDF, DDF | Insert without Contacts | |||||||||
TE Connectivity AMP Connectors T2100103101-000 | Polycarbonate (PC) | 500 V | Terminal Block, Straight - Push In | Silver | 125 °C | -40 °C | Copper Alloy | H10B | UL94 V-0 | 16 A | Male | 10+Ground | Gray | ||||||||
TE Connectivity AMP Connectors T2100122101-000 | Polycarbonate (PC) | 400 V | Ground | Screw | Silver | 125 °C | -40 °C | Copper Alloy | H24B | UL94 V-0 | 16 A, 80 A | Male | 4 | 8 | |||||||
TE Connectivity AMP Connectors T2100483101-000 | Polycarbonate (PC) | 500 V | Terminal Block, Straight - Push In | Silver | 125 °C | -40 °C | H24B | UL94 V-0 | 16 A | Male | Gray | ||||||||||
TE Connectivity AMP Connectors T2100323201-000 | Polycarbonate (PC) | 500 V | Terminal Block, Straight - Push In | Silver | 125 °C | -40 °C | H16B | UL94 V-0 | 16 A | Female | 16+Ground | Gray | |||||||||
TE Connectivity AMP Connectors T2106062101-000 | Polycarbonate (PC) | 400 V, 690 V | Ground | 6 | 6 | Screw | Silver | 125 °C | -40 °C | Copper Alloy | H16B | UL94 V-0 | 16 A | Male | |||||||
TE Connectivity AMP Connectors T2100103201-000 | Polycarbonate (PC) | 500 V | Terminal Block, Straight - Push In | Silver | 125 °C | -40 °C | Copper Alloy | H10B | UL94 V-0 | 16 A | Female | 10+Ground | Gray | ||||||||
TE Connectivity AMP Connectors T2100243101-000 | Polycarbonate (PC) | 500 V | Terminal Block, Straight - Push In | Silver | 125 °C | -40 °C | Copper Alloy | H24B | UL94 V-0 | 16 A | Male | Gray | |||||||||
TE Connectivity AMP Connectors T2100063101-000 | Polycarbonate (PC) | 500 V | Terminal Block, Straight - Push In | Silver | 125 °C | -40 °C | Copper Alloy | H6B | UL94 V-0 | 16 A | Male | 6+Ground | Gray | ||||||||
TE Connectivity AMP Connectors T2100042201-000 | Polycarbonate (PC) | 690 V | Screw | Silver | 125 °C | -40 °C | Copper Alloy | H16B | UL94 V-0 | 80 A | Female | 4+Ground | |||||||||
TE Connectivity AMP Connectors T2100323101-000 | Polycarbonate (PC) | 500 V | Terminal Block, Straight - Push In | Silver | 125 °C | -40 °C | H16B | UL94 V-0 | 16 A | Male | 16+Ground | Gray |
Description
General part information
T210 Series
Male Insert 4+2+Ground Position Screw
