5280-5SG-528

Active

Conxall/Switchcraft

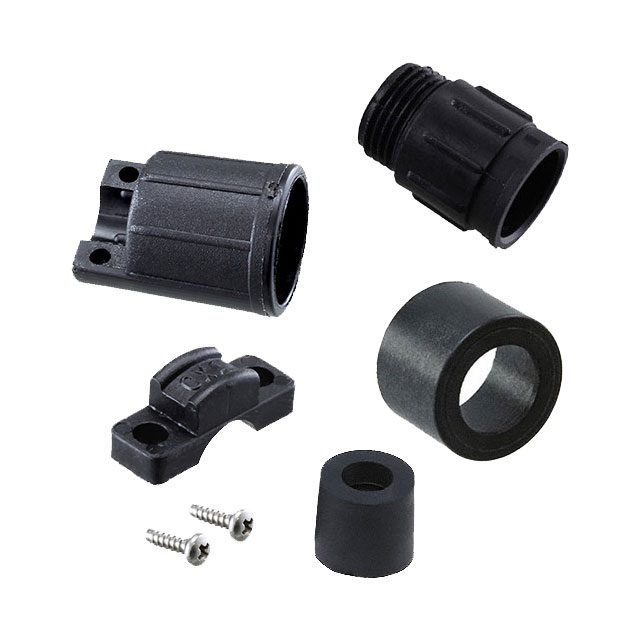

CONN RCPT FMALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 5POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.92

General part information

5 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Mounting Type	Ingress Protection	Fastening Type	Orientation	Backshell Material, Plating	Shielding	Contact Finish - Mating	Color	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Material	Features	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Current Rating (Amps)	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5280-5SG-528	Free Hanging (In-Line)	Weathertight	Bayonet Lock	Keyed	Nylon, Polyamide (PA)	Unshielded	Gold	Black	Crimp	Receptacle, Female Sockets	-40 °C	115 °C	600 V	Brass	Backshell, Cable Clamp	7.37 mm	7.11 mm	0.29 in	0.28 in	5.6 A	Plastic
Conxall/Switchcraft 5280-5SG-318	Free Hanging (In-Line)	Weathertight	Bayonet Lock	Keyed	Nylon, Polyamide (PA)	Unshielded	Gold	Black	Crimp	Receptacle, Female Sockets	-40 °C	115 °C	600 V	Brass	Backshell					5.6 A	Plastic	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5280-5SG-324	Free Hanging (In-Line)	Weathertight	Bayonet Lock	Keyed	Nylon, Polyamide (PA)	Unshielded	Gold	Black	Crimp	Receptacle, Female Sockets	-40 °C	115 °C	600 V	Brass	Backshell	6.86 mm	6.1 mm	0.27 in	0.24 in	5.6 A	Plastic
Conxall/Switchcraft 5280-5SG-321	Free Hanging (In-Line)	Weathertight	Bayonet Lock	Keyed	Nylon, Polyamide (PA)	Unshielded	Gold	Black	Crimp	Receptacle, Female Sockets	-40 °C	115 °C	600 V	Brass	Backshell	5.84 mm	5.33 mm	0.23 in	0.21 in	5.6 A	Plastic
