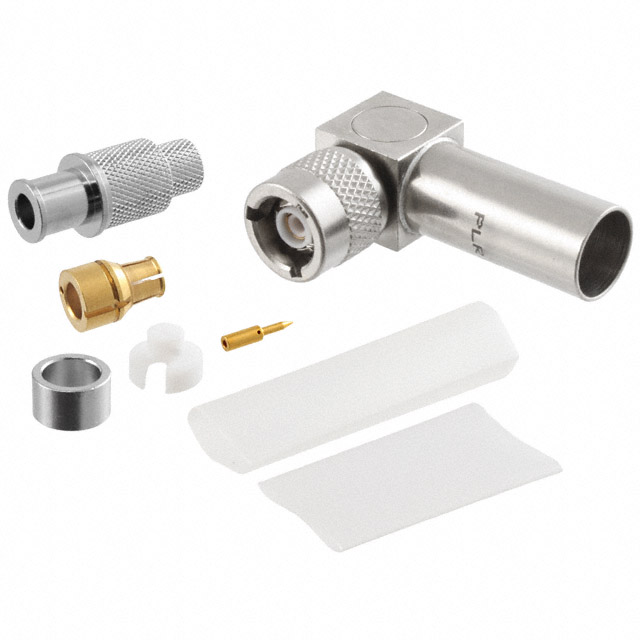

PLR155AC-201

Active

Cinch Connectivity Solutions Trompeter

CONN TRS PLUG R/A CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRS PLUG R/A CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLR155AC-201	PLR155 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	M17/176-00002	M17/176-00002
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	TRS, Twinaxial/Triaxial	TRS, Twinaxial/Triaxial
Connector Type	Plug, Male Pin (Concentric)	Plug, Male Pin (Concentric)
Contact Termination	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Three Lug	Three Lug, Four Lug
Frequency - Max [Max]	500 MHz	500 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Strain Relief, 1 Connector, 1 Heat Shrink	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	400 V	400 V

CONN TRS PLUG R/A CRIMP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Voltage Rating	Fastening Type	Impedance	Body Finish	Mounting Type	Features	Connector Style	Includes	Body Material	Housing Color	Shield Termination	Connector Type	Cable Group	Center Contact Plating	Frequency - Max [Max]	Mating Cycles	Number of Ports	Center Contact Material
Cinch Connectivity Solutions Trompeter PLR155AC-201	-65 ░C	200 °C	Crimp	400 V	Bayonet Lock	Non-Constant	Nickel	Free Hanging (In-Line), Right Angle	Three Lug	TRS, Twinaxial/Triaxial	1 Connector, 1 Heat Shrink, 1 Strain Relief	Brass	Silver	Crimp	Plug, Male Pin (Concentric)	M17/176-00002	Gold	500 MHz	500	1	Beryllium Copper
Cinch Connectivity Solutions Trompeter PLR155ACFL-201	-65 ░C	200 °C	Crimp	400 V	Bayonet Lock	Non-Constant	Nickel	Free Hanging (In-Line), Right Angle	Four Lug	TRS, Twinaxial/Triaxial	1 Connector, 1 Heat Shrink, 1 Strain Relief	Brass	Silver	Crimp	Plug, Male Pin (Concentric)	M17/176-00002	Gold	500 MHz	500	1	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 186.07

General part information

TRS, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line), Right Angle Crimp
