19-452.035

Active

EAO

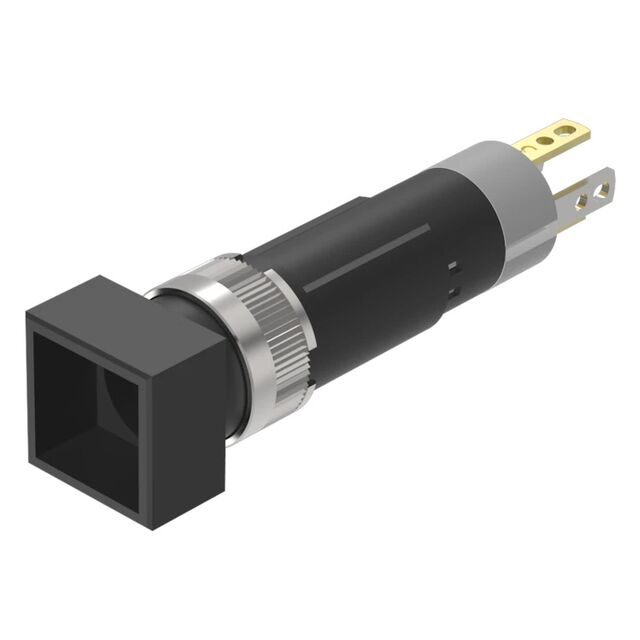

SWITCH PB SPST-NC 0.1A 50V

Search across all available documentation for this part.

Active

EAO

SWITCH PB SPST-NC 0.1A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	19-452.035

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Ingress Protection	IP40
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	8 mm
Switch Function	On-Mom
Termination Style	Quick Connect, Solder
Termination Style	2 mm
Termination Style	0.079 in
Type	Standard
Voltage Rating - AC	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH PB SPST-NC 0.1A 50V

Part	Mechanical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Current Rating (Amps)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - AC	Switch Function	Actuator Marking	Circuit	Termination Style	Termination Style	Termination Style
EAO 19-452.035	2000000 Cycles	Square, Button (Not Included)	8 mm	IP40	100 mA	Standard	65 °C	-25 °C	Panel Mount, Front	50 V	On-Mom	No Marking	SPST-NC	Quick Connect, Solder	2 mm	0.079 in

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
