UAI-1206-5A300-SMD-0F-AU

Active

SCHURTER Inc.

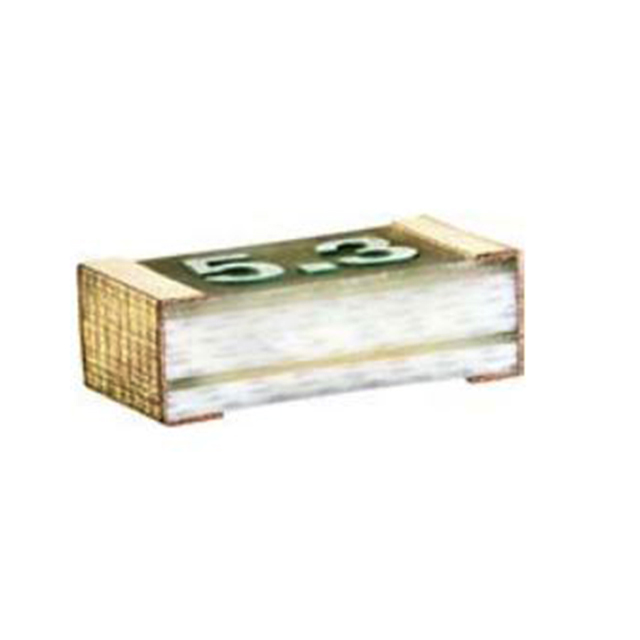

FUSE BOARD MOUNT 5.3A 32VDC 1206

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BOARD MOUNT 5.3A 32VDC 1206

Technical Specifications

Parameters and characteristics for this part

Specification	UAI-1206-5A300-SMD-0F-AU

Approval Agency	UL
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	5.3 A
DC Cold Resistance	0.00845 Ohms
Fuse Type	Board Mount
Melting I²t	5.6
Mounting Type	Surface Mount
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Package / Case	1206 (3216 Metric)
Response Time	Slow Blow
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Size / Dimension [z]	0.043 "
Size / Dimension [z]	1.1 mm
Voltage Rating - DC	32 V

FUSE BOARD MOUNT 5.3A 32VDC 1206

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Fuse Type	Mounting Type	Voltage Rating - DC	Response Time	DC Cold Resistance	Melting I²t	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Approval Agency	Package / Case
SCHURTER Inc. UAI-1206-5A300-SMD-0F-AU	0.063 in	0.043 "	1.1 mm	3.2 mm	1.6 mm	0.126 in	Board Mount	Surface Mount	32 V	Slow Blow	0.00845 Ohms	5.6	5.3 A	140 °C	-40 °C	100 A	UL	1206 (3216 Metric)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5.3 A AC 32 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
