1943/3F BK003

Active

ALPHA WIRE

CABLE 3COND 14AWG BLK SHLD 250'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 14AWG BLK SHLD 250'

Technical Specifications

Parameters and characteristics for this part

Specification	1943/3F BK003

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.45 mm
Jacket (Insulation) Diameter [diameter]	0.372 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	3000 "
Length	76.2 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	13.5 AWG

CABLE 3COND 14AWG BLK SHLD 250'

Part	Voltage	Jacket (Insulation) Material	Features	Shield Type	Conductor Insulation	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket Color	Conductor Material	Shield Coverage	Number of Conductors	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge
ALPHA WIRE 1943/3F BK003	300 V	Poly-Vinyl Chloride (PVC)	Drain Wire	Foil	Poly-Vinyl Chloride (PVC)	Aluminum	41	30 AWG	3000 "	76.2 m	Black	Copper, Bare	100 %	3	Multi-Conductor	9.45 mm	0.372 in	-30 ░C	105 ░C	13.5 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

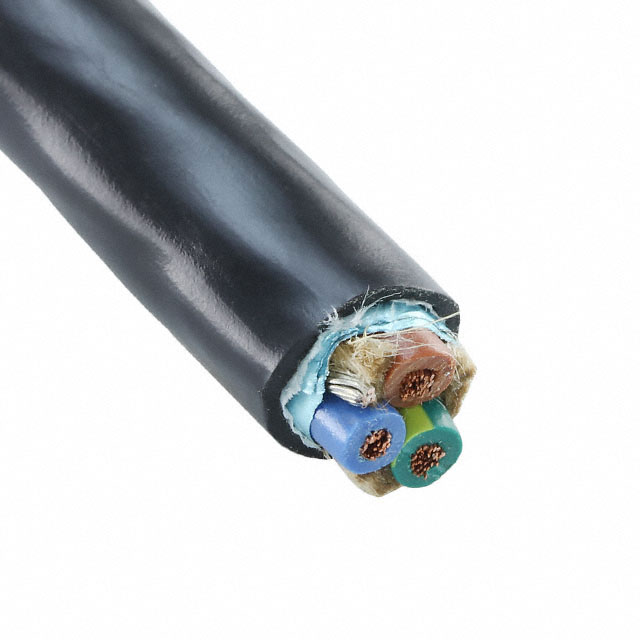

3 Conductor Multi-Conductor Cable Black 14 AWG Foil 250.0' (76.2m)
