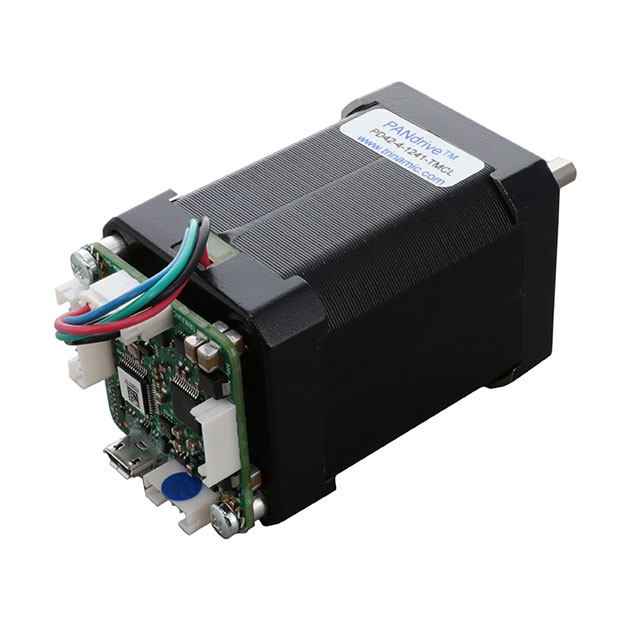

PD42-4-1241-TMCL

Active

Analog Devices Inc./Maxim Integrated

PANDRIVE NEMA17, 24V, 0.8NM

Deep-Dive with AI

Search across all available documentation for this part.

PD42-4-1241-TMCL

Active

Analog Devices Inc./Maxim Integrated

PANDRIVE NEMA17, 24V, 0.8NM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PD42-4-1241-TMCL	PD42-4 Series

Coil Resistance	1.1 Ohms	1.1 - 2.3 Ohms
Coil Type	Bipolar	Bipolar
Current Rating (Amps)	3 A	2 - 3 A
Diameter - Shaft [diameter]	0.197 in	0.197 in
Diameter - Shaft [diameter]	5 mm	5 mm
Features	Flatted Shaft, Integrated Controller	Flatted Shaft, Integrated Controller
Length - Shaft and Bearing [x]	24 mm	24 mm
Length - Shaft and Bearing [x]	0.945 in	0.945 in
Mounting Hole Spacing	1.22 in	1.22 in
Mounting Hole Spacing	31 mm	31 mm
NEMA Frame Size	17	17
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Rotor Inertia	102 gcm˛	102 gcm˛
Size / Dimension [x]	42 mm	42 mm
Size / Dimension [x]	1.654 in	1.654 in
Size / Dimension [y]	1.654 "	1.654 "
Size / Dimension [y]	42 mm	42 mm
Step Angle	1.8 °	1.8 °
Steps per Revolution	200	200
Termination Style	-	Connector
Torque - Holding (oz-in / mNm)	113.3 oz-in	99.1 - 113.3 oz-in
Torque - Holding (oz-in / mNm)	800 mNm	700 - 800 mNm
Type	Hybrid	Hybrid
Voltage - Rated	-	4.4 - 24 VDC
Weight	-	0.486 - 220.45 g

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 265.93

PD42-4 Series

PANDRIVE NEMA17, 24V, 0.8NM

Part	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Step Angle	Coil Resistance	Coil Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	NEMA Frame Size	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Current Rating (Amps)	Features	Mounting Hole Spacing	Mounting Hole Spacing	Type	Rotor Inertia	Steps per Revolution	Voltage - Rated	Termination Style	Weight
Analog Devices Inc./Maxim Integrated PD42-4-1241-TMCL	113.3 oz-in	800 mNm	50 °C	-20 C	0.197 in	5 mm	1.8 °	1.1 Ohms	Bipolar	42 mm	1.654 "	1.654 in	42 mm	17	24 mm	0.945 in	3 A	Flatted Shaft, Integrated Controller	1.22 in	31 mm	Hybrid	102 gcm˛	200
Analog Devices Inc./Maxim Integrated PD42-4-1240-TMCL	99.1 oz-in	700 mNm	50 °C	-20 C	0.197 in	5 mm	1.8 °	2.3 Ohms	Bipolar	42 mm	1.654 "	1.654 in	42 mm	17	24 mm	0.945 in	2 A	Flatted Shaft, Integrated Controller	1.22 in	31 mm	Hybrid	102 gcm˛	200	24 VDC
Analog Devices Inc./Maxim Integrated PD42-4-1370-TMCL	99.1 oz-in	700 mNm	50 °C	-20 C	0.197 in	5 mm	1.8 °	2.3 Ohms	Bipolar	42 mm	1.654 "	1.654 in	42 mm	17	24 mm	0.945 in	2 A	Flatted Shaft, Integrated Controller	1.22 in	31 mm	Hybrid	102 gcm˛	200	4.4 V	Connector
Analog Devices Inc./Maxim Integrated PD42-4-1140-TMCL	99.1 oz-in	700 mNm			0.197 in	5 mm	1.8 °		Bipolar	42 mm	1.654 "	1.654 in	42 mm	17	24 mm	0.945 in	2 A	Flatted Shaft, Integrated Controller			Hybrid		200	24 VDC		0.486 lb, 220.45 g
Analog Devices Inc./Maxim Integrated PD42-4-1240-CANOPEN	99.1 oz-in	700 mNm	50 °C	-20 C	0.197 in	5 mm	1.8 °	2.3 Ohms	Bipolar	42 mm	1.654 "	1.654 in	42 mm	17	24 mm	0.945 in	2 A	Flatted Shaft, Integrated Controller	1.22 in	31 mm	Hybrid	102 gcm˛	200	4.4 V
Analog Devices Inc./Maxim Integrated PD42-4-1140-CANOPEN	99.1 oz-in	700 mNm			0.197 in	5 mm	1.8 °		Bipolar	42 mm	1.654 "	1.654 in	42 mm	17	24 mm	0.945 in	2 A	Flatted Shaft, Integrated Controller			Hybrid		200	24 VDC		0.486 lb, 220.45 g

Description

General part information

PD42-4 Series

Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 3 A 3.3VDC
