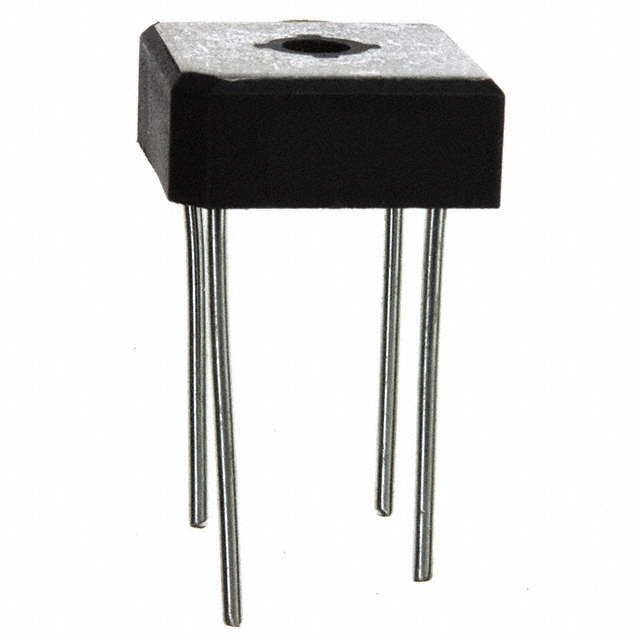

MP10005G-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 50V 10A MP8

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 50V 10A MP8

Technical Specifications

Parameters and characteristics for this part

Specification	MP10005G-G

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-Square, MP-8
Supplier Device Package	MP8
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	50 V

BRIDGE RECT 1PHASE 50V 10A MP8

Part	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Package / Case	Current - Reverse Leakage @ Vr	Mounting Type	Diode Type	Current - Average Rectified (Io)
Comchip Technology MP10005G-G	Standard	-55 °C	150 °C	MP8	1.1 V	50 V	4-Square, MP-8	10 µA	Through Hole	Single Phase	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 1.09

General part information

Bridge Rectifier Single Phase Standard 50 V Through Hole MP8
