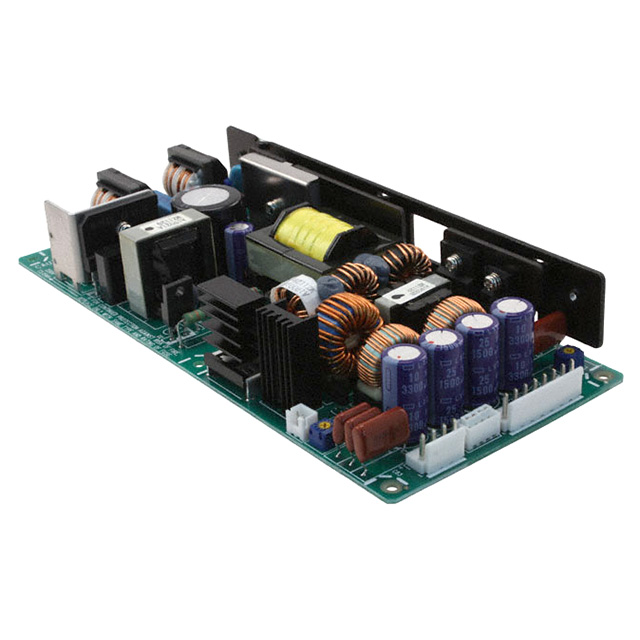

ZWQ80-5225/L

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 4 OUTPUT, 104W @ 30CFM, 80 W, 85V AC TO 265V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Declaration of Conformity EN +2

ZWQ80-5225/L

Active

TDK-LAMBDA

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 4 OUTPUT, 104W @ 30CFM, 80 W, 85V AC TO 265V AC

Deep-Dive with AI

DocumentsDatasheet Declaration of Conformity EN +2

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 172.30
		10	$ 165.58
		25	$ 153.98
		50	$ 149.64
Newark	Each	1	$ 172.30
		10	$ 165.58
		25	$ 153.98
		50	$ 147.33

Description

General part information

ZWQ80 Series

ZWQ80-5225/L is a ZWQ series quad output power supply. It includes overpower protection. Application includes factory automation, test and measurement. light industrial equipment. Certified by IEC/UL/CSA/EN62368-1, 60950-1.

Documents

Technical documentation and resources

Datasheet

Specification	ZWQ80-5225/L	ZWQ80 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	8 A	8 A
Current - Output 2	2 A	2 A
Current - Output 3	2 A	2 A
Current - Output 4	7 A	1.5 - 7 A
Efficiency	72 %	72 %
Features	PFC, Adjustable Output, Universal Input	PFC, Adjustable Output, Universal Input
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	4	4
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	80 W	80 W
Size / Dimension [x]	210 mm, 8.27 in	8.27 - 210 mm
Size / Dimension [y]	3.68 in, 93.5 mm	3.68 - 93.5 in
Size / Dimension [z]	1.38 in, 35 mm	1.38 - 35 in
Type	Open Frame	Enclosed, Open Frame
Voltage - Input [Max]	265 VAC	265 VAC
Voltage - Input [Min]	85 VAC	85 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	5 V	5 V
Voltage - Output 2	12 V	12 V
Voltage - Output 3	-12 V	-12 V
Voltage - Output 4	5 V	5 - 24 V

Part	Type	Current - Output 3	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Current - Output 1	Approval Agency	Voltage - Output 2	Voltage - Output 4	Voltage - Output 1	Current - Output 4	Features	Mounting Type	Voltage - Output 3	Power (Watts)	Current - Output 2	Number of Outputs	Voltage - Isolation	Applications	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]
TDK-LAMBDA ZWQ80-5224/A	Enclosed	2 A	8.27 in, 210 mm	3.68 in, 93.5 mm	1.38 in, 35 mm	8 A	CE	12 V	24 V	5 V	1.5 A	Adjustable Output, PFC, Universal Input	Chassis Mount	-12 V	80 W	2 A	4	3000 V	ITE (Commercial)	72 %	-10 °C	60 °C	85 VAC	265 VAC
TDK-LAMBDA ZWQ80-5222/A	Enclosed	2 A	8.27 in, 210 mm	3.68 in, 93.5 mm	1.38 in, 35 mm	8 A	CE	12 V	12 V	5 V	3 A	Adjustable Output, PFC, Universal Input	Chassis Mount	-12 V	80 W	2 A	4	3000 V	ITE (Commercial)	72 %	-10 °C	60 °C	85 VAC	265 VAC
TDK-LAMBDA ZWQ80-5225/A	Enclosed	2 A	8.27 in, 210 mm	3.68 in, 93.5 mm	1.38 in, 35 mm	8 A	CE	12 V	5 V	5 V	7 A	Adjustable Output, PFC, Universal Input	Chassis Mount	-12 V	80 W	2 A	4	3000 V	ITE (Commercial)	72 %	-10 °C	60 °C	85 VAC	265 VAC
TDK-LAMBDA ZWQ80-5225/L	Open Frame	2 A	8.27 in, 210 mm	3.68 in, 93.5 mm	1.38 in, 35 mm	8 A	CE	12 V	5 V	5 V	7 A	Adjustable Output, PFC, Universal Input	Chassis Mount	-12 V	80 W	2 A	4	3000 V	ITE (Commercial)	72 %	-10 °C	60 °C	85 VAC	265 VAC
